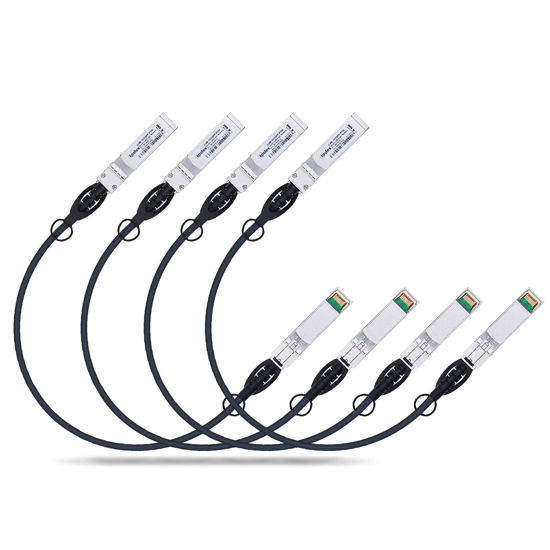

SFP+ DAC (Direct Attach Copper) passive Twinax cable is suitable for very short distances transmission and offers a highly cost-effective and low-power solution to connect within racks and across adjacent racks. SFP+ Twinax passive cable allows for serial data transmission up to 10.3Gb/s, which is a low-cost choice for very short-reach applications of 10GbE or 1-8G Fiber Channel. SFP+ DAC which replaces two optical modules and a connectorized optical fiber with a Twinax copper cable assembly offers a higher density, lower cost, and lower power 10 Gigabit Ethernet solution than other cable types such as 10GBASE-CX4 and CAT6/CAT6A 10GBASE-T. AWG(American wire gauge), decreasing gauge numbers denote Increasing wire diameters, the transmission will be longer, 30AWG for 0.5~3 meters application, the price is better than 24AWG Cable.

Features:

• 10GBase-CU
• SFP+ to SFP+ Connector
• AWG30
• Length: 0.5~3 meters
• 2-pair differential Twinax cable
• Impedance: 100-ohm
• EEPROM I2C (MCU: customized)
• Compliant to SFP MSA
• Low power consumption
• Excellent EMI performance
• RoHS Compliant
• Temp. Range(℃): 0~70 (Industrial Temp.: customized)

Applications:

• 1-8G Fiber Channel
• 1-10G Gigabit Ethernet
• Networking, Storage, Telecommunications
• Hub, Switches, Routers, Servers, Network Interface Card(NICs)
