Overview:

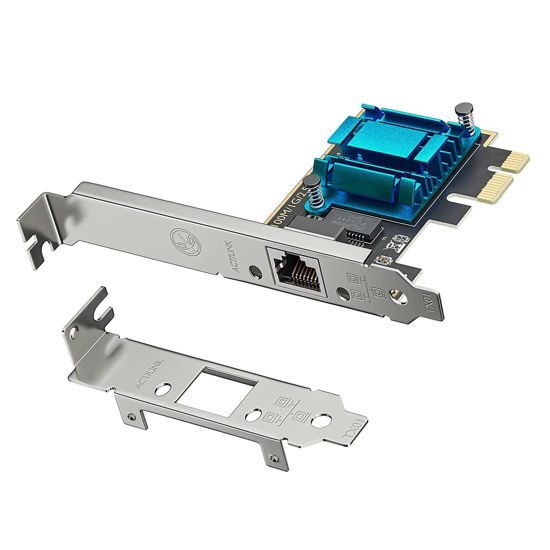

Upgrade your desktop or server's networking capabilities with this high-speed PCIe Gigabit Ethernet card. Designed for easy installation in any PCI Express X1 to X16 slot, it supports a wide range of networking standards and features that make it ideal for demanding workloads.

Features:

- Supports IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3az, and IEEE 802.3bz standards

- Compatible with a variety of network media including cat3 or above UTP (for 10Base-T), cat5 or above UTP (for 1000Base-Tx), and more

- Provides data rates ranging from 100Mbps all the way up to an incredible 2.5Gbps

- Features auto MDIX technology that automatically detects cable type for easy connection without worrying about crossover cables

- Wake-On-LAN function allows remote powering on/off of the computer over the network using Magic Packet technology

- PXE function enables booting from a remote server over the network

Specifications:

Port number:

1* RJ45

Standard:

IEEE 802.3, IEEE 802.3u, IEEE 802.3ab. IEEE 802.3az. IEEE 802.3bz

Network media:

10Base-T,cat3 or above UTP, 1000Base- Tx, cat5 or above UTP

Data rate Type:

100/1G/2.5bps

Interface:

PCI Express X1 to X16 slot

Auto MDIX:

YES

MTBF:

376,212 Hours

Dimension:

71.5*50*1.6mm

weight：

45g

Support OS:

Windows10(32/64), Win7 (32/64), Win8,8.1 (32/64)

Windows Server 2012, 2008; LINUX; Mac OS.

Environment:

Operating Temperature: 0°C-55°C; Relative Humidity: 10%-90%(non-condensing)

Storage Temperature: -10°C-70°C; Relative Humidity: 10%-90%(non-condensing)

PXE function:

Supports Wake-On-LAN function:

YES
