Product description

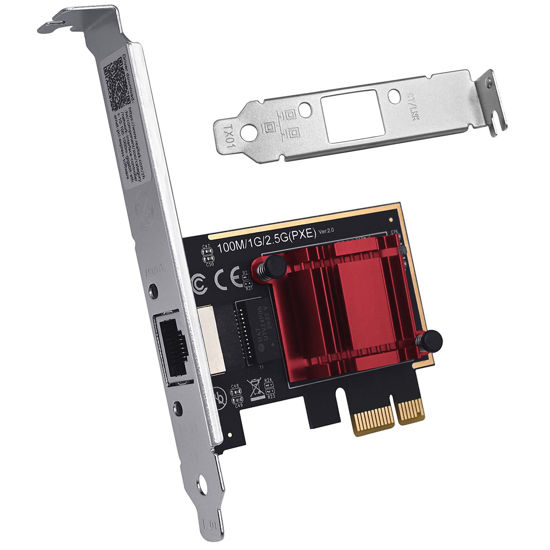

PCI Express RTL8125B 2.5G network adapter is combines a four-speed IEEE802.3 compatible Media Access controller with a four-speed Ethernet transceiver, it is complies with the IEEE802.3u specification for 10/100Mbps Ethernet,the IEEE802.3ab specification for 1000Mbps Ethernet and IEEE802.3bz specification for 2500Mbps Ethernet

Product Feature

It offers high-speed transmission over CAT5e UTP cable OR CAT3 UTP(10Mbps only)cable .it is suitable for multiple market segments and emerging applications, such as desktop, workstation, server, communications platforms, and embedded applications

Specification

• Chipset: RTL8125B
• Port number：1* RJ45
• Standard: IEEE 802.3、IEEE 802.3u、IEEE 802.3ab、IEEE 802.3az、IEEE 802.3bz
• Network media: 10Base-T,cat3 or above UTP,1000Base-Tx,cat5 or above UTP
• Data rate: PCI Express 1x slot
• Auto MDIX: YES
• Full Duplex Support: YES
• LED Indicator: 100M/1G/2.5G Link/Act
• Dimension: 71.5*50*1.6mm
• Support OS: Windows10(32/64), Win7 (32/64), Win8, 8.1 (32/64), Windows Server 2012, 2008, Linux, Mac OS
• ·Support PXE function
• ·Support Wake on LAN
• ·Support 2.5G and 1G Lite mode
• ·Compatible with NBASE-T Alliance PHY Specification
• ·Supports PCI Express 2.1
• ·Supports 1-Lane 2.5G/5Gbps PCI Express Bus
• ·Compliant with IEEE 802.3,IEEE 802.3u,IEEE 802.3ab
• ·Supports IEEE 802.1P Layer 2 Priority Encoding
• ·Supports IEEE 802.1Q VLAN tagging
• ·Supports IEEE802.3az(Energy Efficient Ethernet)
• ·Supports IEEE802.3bz(2.5GBASE-T)
• ·Supports Full Duplex flow control(IEEE 802 .3x)
•

Packing list

• 1xPCIE 2.5G LAN Card
• 1x Low Profile Bracket
