Feature:

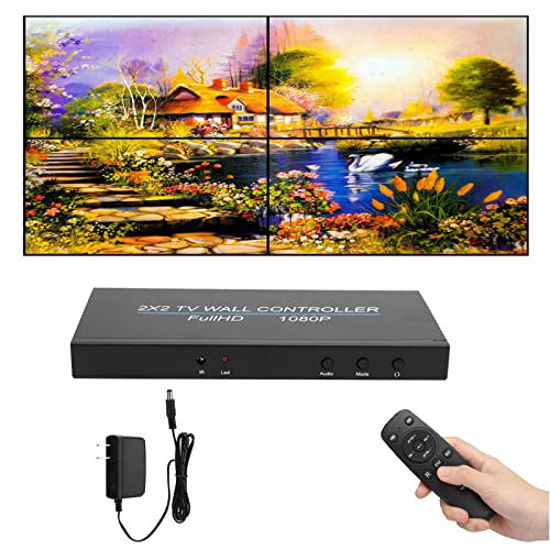

1. This 2X2 splicer supports 1 HDMI input and 4 HDMI outputs. The main function is to divide a complete HDMI high-definition image into 4 blocks and assign them to 4 video display units (such as rear projection unit, LCD TV, etc.). ), complete a large screen with a dynamic image composed of 4 hdmi HD video display units.
2. Made of metal material, anti-interference, , easy heat dissipation and long service life.
3. It is powered by 12V and has over-current for stable performance.
4. The gold-plated interface effectively reduces data loss and improves efficiency.
5. Support HDMI1.3 input, support 4 HDMI output. Supports 1920 x 1080P 24/30/50/60Hz and below input. Support 1920 x 1080P@60Hz HD resolution output.
6. Support a variety of stitching, plug and play, easy to operate. Support for splicing 2X1/3X1/4X1/1X2/1X3/1X4/2X2.

Specification:
Item Type: LED Video Wall Controller
Material: Iron Shell
Gross Weight: Approx. 739.00g
Packing Size: Approx. 24.50 x 17.40 x 5.80cm / 9.6 x 6.9 x 2.3in
Power Supply: 12V/1A
HDMI: 1.3
Resolution: 1920 x 1080P@60Hz
Input Distance: 5 Meters/16.4ft
Output Distance: 10 Meters/33ft
Remote Control Battery: 2x AAA Batteries (Not Included)

Package List:
Video Wall Controller x 1
Instruction Manual x 1
Adapter x 1
Remote Control x 1
