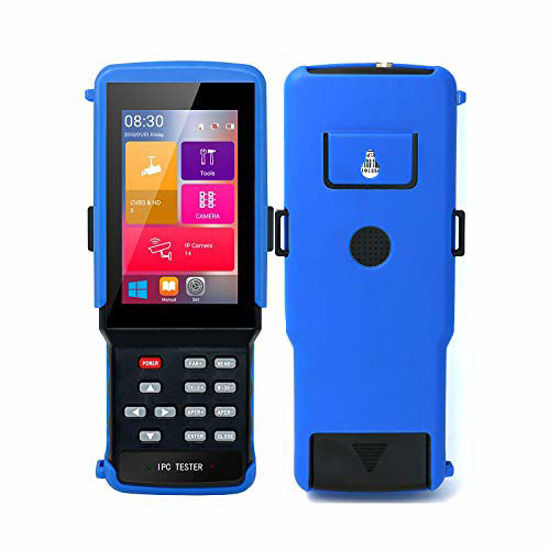

IPCX9310 Feature:
1.4 inch resolution 800 × 480 IPS HD full view,H.265/H.264, 4K video display via mainstream.
2.Network cable TDR test function can display cable length, attenuation, quality, reflectivity, impedance parameters.
3.Support IP&CVBS&Coax HD Camera test:HD TVI&CVI 8MP(3840 X 2156 15P); AHD 5MP(2560 X 1920 15P).
4.With RS485 port to support PTZ Control:Support Pelco-D/P, Samsung, Panasonic, etc. more than 30 protocols.
5.IP-Discovery:works as a router, can identify camera IP directly even you do not know the camera IP. With this function, you can discover camera IP and jump to view camera video directly.
6.Support PSE device power input and test,such as switch voltage test. And support DC12V 3A,PoE 48V output.
7.UTP Cable test: Test any 2 cable core connection sequence and on-off status.
8.RTSP player can play RTSP network video stream directly.
9.Built-in WIFI connection: 10M/100M/1000M automatically adaptive.
10.CVBS Analog Camera test:1 channel CVBS analog signal input, support PAL/NTSC format adaptation, and full screen display.
11.HIKVISION SADP tool:HIKVISION camera batch activation, batch IP modification, be able to modify username and password
12.Dahua test tool:Dahua camera batch activation, batch IP modification, cross network segment IP modification, modify username and password.
13.Rapid function enables you to view IP camera video quickly, as long as the camera IP and the instrument IP are in the same network segment and the camera.
14.Support all camera videos photo taking, video recording and stored as H264 format.
15.It can update software on line on APP store.
16.Built-in Rechargeable 7.4V polymer lithium battery, capacity 3200mAh, can work continually for 6-8 hours.
