Attention:
1. Do not purchase this item if you are not sure the differences between HDMI to Component and Component to HDMI. They look similar, but different products.
2. The maximum resolution of Component output is 1080P/60Hz because the specifications of Component signal do not have a 4k resolution.
3. This converter only decode HDCP 1.3 & 1.4, can not decode HDCP 2.2. If there is no image when using 4k HDMI input, please turn off HDCP 2.2.
4. The color of Component jacks must be connected correspondingly. Video: green/blue/red. Audio: red/white.

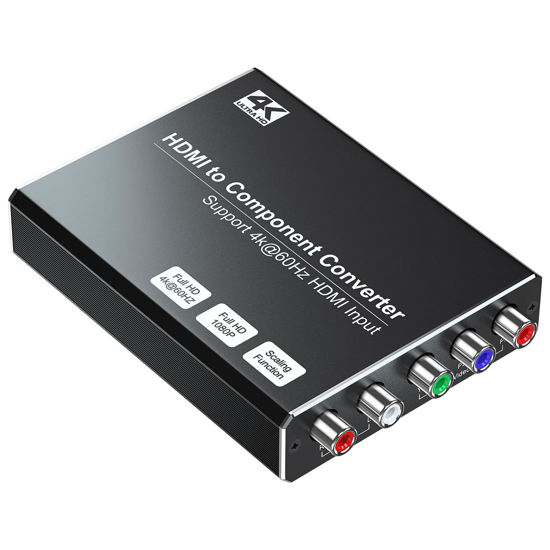

This HDMI to Component Converter is designed for converting HDMI video & audio signal into analog YPbPr video and stereo R/L audio signal. Allows users to enjoy high definition video and audio on the traditional televisions or projectors when watching movies or playing games.

Fetures:
1. Built-in scaling technology, up-scales or down-scales HDMI signal into multiple kinds of Component signals.
2. OSD (On-Screen Display) for showing input & output resolutions.
3. Supports 4k/60Hz HDMI input.
4. Zoom function for adjusting picture size.

Specification:
1. Input: HDMI x 1
2. Output: YPbPr + R / L Audio
3. Dimention: 116 x 85 x 23mm
4. Weight: 165g
5. HDMI Input Resolutions: 480p(60Hz), 576p(50Hz), 720p(50/60Hz), 1080i/p(50/60Hz), 3840x2160p(50/60Hz), 4096x2160p(50/60Hz), 800x600(60Hz), 1024x768(60Hz), 1280x800(60Hz), 1280x960(60Hz), 1280x1024(60Hz), 1440x900(60Hz), 1600x1200(60Hz)
6. Component Output Resolutions: 480i(60hz), 480p(60hz), 576i(50hz), 576p(50hz), 720p(50/60Hz), 1080i/p(50/60Hz)

Package List:
1. HDMI to YPbPr Scaler Converter
2. Power Supply
3. Instruction

Warranty:
This HDMI to Component scaler converter provides 12 months warranty & friendly customer service.
