Cost-Effective Fiber Alternative
SFP+ DAC (Direct Attach Copper) passive twinax cable is suitable for very short distances transmission and offers a highly cost-effective and low power solution to connect within racks and across adjacent racks. SFP+ directly attached Twinax cable assemblies support 10 Gigabit Ethernet, 10 Fibre Channel, and other industry standards. This copper cable provides a cost-effective alternative to purchasing expensive fiber optic transceivers and cables for distances up to 7 meters.

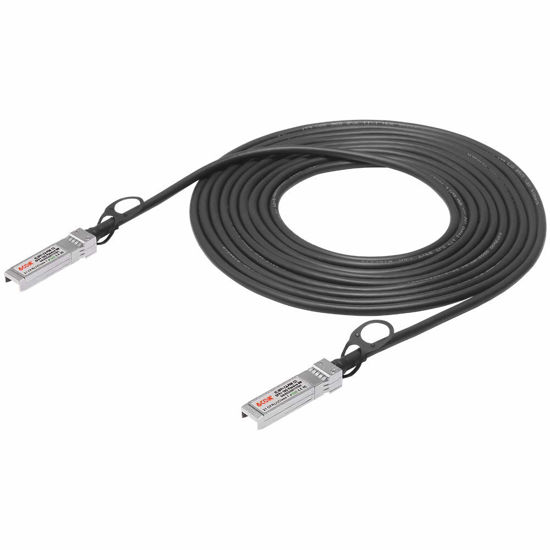

10G SFP+ DAC Twinax Cable for Cisco, Ubiquiti, D-Link, Supermicro, Netgear, other Open Switches.
Connector Type: SFP+ to SFP+
Max Data Rate: 10Gbps
Minimum Bend Radius: 23mm
Wire AWG: 30AWG
Cable Length: 5m (16.4ft)
Jacket Material: PVC (OFNR)
Temperature: 0 to 70°C (32 to 158°F)
Protocols: 1x InfiniBand QDR, DDR, SDR, 10G Gigabit Ethernet, Fibre Channel

Install a 10G DAC Cable:

A. Install SFP+ Modules
1. Remove the protective ESD cap from the connector.
2. Slide the SFP+ cable end into the slot until it locks into position(There is an audible click when the connector is properly seated.)
B. Remove SFP+ Modules
1. Pull on the SFP+ latch pull lanyard.
2. Grasp the SFP+ connector on both sides and remove it from the system.
3. If possible, replace the ESD protective cap or put the SFP+ into an ESD protected bag.

Safety Information
Notice:
1. The cables can only be installed or replaced by qualified personnel.
2. Please wear antistatic gloves.
3. Caution against moisture.
4. Do not disassemble or modify the cables.

Warning:
Don't approach or look the optical fiber exit with naked eyes directly. Excessive bending is strictly prohibited.
