Feature:
1. Convert the video into the balanced , and transmit it on a normal Cat-5 unshielded twisted pair cable with a rate.
2. It can transmit 8 channels of video . 8core Cat5 twisted pair cable simultaneously displays video images.
3. It can be used in occasion such as video surveillance and video conferencing. Compatible with all for , HDTVI, HDAHD.
4. Support NTSC, PAL and SECAM video formats. It has 60dB crosstalk and antinoise capability.
5. Excellent antiinterference ability. Builtin TVS can voltage up to 4000V.


Specification:

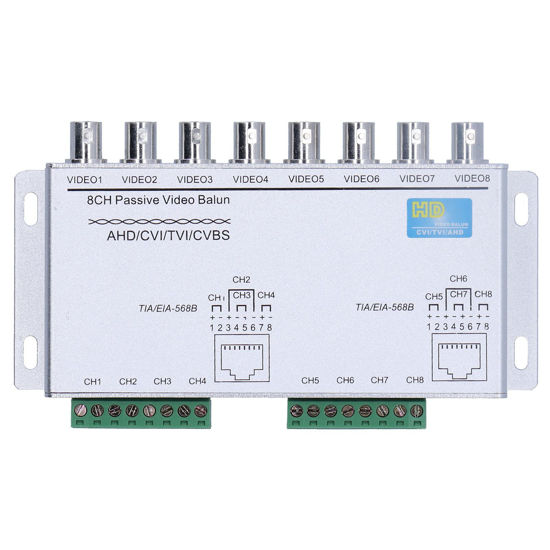

Item Type: Video Balun
Material: Metal
Video Format: NTSC, PAL
Maximum Input: 1Vp-p
Frequency Response: DC to 60MHz
CMMR: 60dB, (20K-60M) Hz
Wire Type: UTP (22-24) AWG
Wire Category: CAT5e CAT6
ESD: 8KV
Impedance: BNC: 75ohms, RJ45: 100ohms
Working Temperature: -10-60
Storage Temperature: -30-70
Humidity Range: 0-95%
Distance:
Up to 450m/1476.4ft for 720P CVI Cameras
Up to 250m/820.2ft for 1080P CVI Cameras
Up to 250m/820.2ft for 720P/1080P TVI Cameras
Up to 320m/1049.9ft for 720P AHD Cameras
Up to 250m/820.2ft for 1080P AHD Cameras

How to Use:
Connect one end to twisted pair cable and analog camera, and the other end to DVR, it can be used after power on






Package List:
1 x Video Balun
1 x Manual
