Specification:
Features:
Made of plastic material, sturdy and to use.
Conform to international safety product standards and is to use.

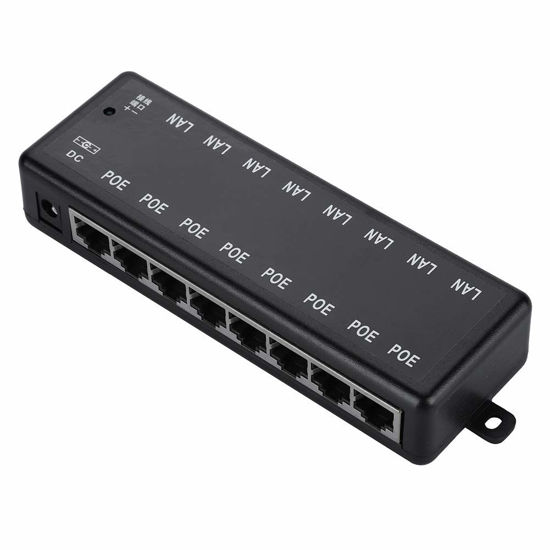

This Non standard passive PoE injector is a simple and convenient equipment for PoE or Non PoE devices via an Ethernet cable.
Apply for IEEE802.3af/at standard POE powered devices like for DAHUA, for and other brands IP cameras, or being equipped together with IEEE802.3af/802.3at standard poe splitter for non POE devices.
It does not have auto detection function and directly supply power to the network devices by force as soon as you connect them, powered device or poe splitter must conform to standard IEEE 802.3af/at, the same time your powered device must support poe pin 4/5(+), 7/8(-) midspan.
Specifications:
Voltage: DC12V-48V 15A(Biggest)
Led: Indicate the working state
Power pin: 4&5(+), 7&8(-); Data pin: 1236
Lan port: 8ports in RJ45(data in), 8port poe RJ45(data&power out)
Lan environment: 10/100Mbps Base-T, Ethernet cable: TIA/EIA 568 Cat.5 or Cat.5e
Data in: PC/Hub/Switch/Router, etc.
Working temp: 0~+40°C
Working humidity: 20 ~90% non-condensing
Storage temp & humidity: -20~+85°C, 10~95%
Size: 14.5cm*5cm*2.7cm/5.7*2.0*1.1in
Package Weight:148g/5.2oz
Notes:
1. Please select according your device power consumption, in order to ensure stable running, the total power consumption must be lower than the total power supply.
2. Tip: the power voltage should not be over DC48V.
