Overview

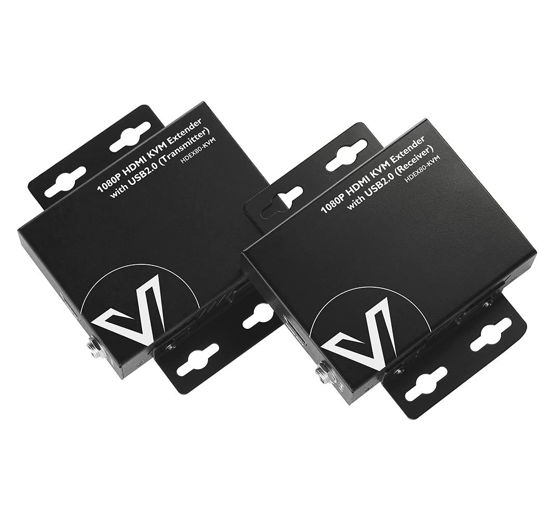

The HDEX80-KVM extends full HD HDMI signal up to 80m via a single Cat X cable, without any
video loss and time delay. With USB 2.0 pass-through and USB Host connector in transmitter,
and USB Device connectors in receiver, it provides remote source PC control with keyboard
and mouse, interactive display operation, data transmission and USB streaming over distances
up to 80m. It has many professional designs which suitable for various application scenario,
especially for engineering project usage. Two-way PoE (Power over Ethernet), integrates
power into the Cat 5e/6 cable, only one power adapter is needed to either transmitter or receiver.

Features
Extends full HD HDMI signal up to 260ft/80m via single Cat X cable without signal loss and delay
Extends high speed USB 2.0 signal (480Mbps) up to 260ft/80m, provides 2xUSB 2.0 ports at display end
Supports two-way PoE (Power over Ethernet), only one power adapter is needed to either transmitter or receiver
Auto EDID management automatically adjusts to overcome compatibility issues
Plug and play, no driver needed.

Package Contents Before you start the installation of the product, please check the package contents:
HDEX80-KVM Transmitter x 1
HDEX80-KVM Receiver x1
Power Adapter (DC 12V 2A) x 1
USB type-A to type-A Cable x 1
Mounting Brackets (with Screws) x 4
User Manual x 1
