We provide video guide+Detail wire diagram, so you can easily setup System, also provide live support.

Package include:
1 x Fingerprint+RFID+Pin Code Access control+Time Attendance Device
1 x Electric Magnetic Lock(600 LBS Force)
1 x Power supply( 110-240V input, 3A output, to power the whole system)
1 x Push to Exit button
10 x RFID Key fobs
10 x RFID Cards
1 x CD for Software/User manual/Wire diagram/Video Guide

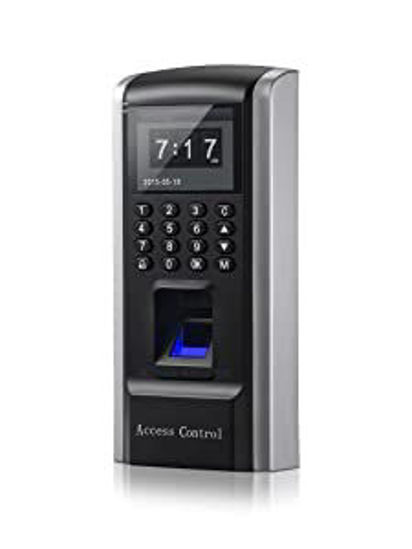

Fingerprint&RFID Access Control Device::
Identification Mode: Fingerprint/ RFID Card/ Password
Fingerprint Capacity: 1,000; Log Capacity: 100,000
Communication: TCP/IP
USB up/download: Support
Language+Voice: English
Lock Connect: NO/NC lock both support
Wiegand Interface: Wiegand 26 Input+Output Both Support
Anti-passback: Available
Power DC 12V/1A
Size:180(L)*82(W)*38(H)mm
Color:Black

Power Supply:
This AC 110V--240V Power supply controller is a transformer which provides stable output voltage for access controller, lock, and exit button. Can reduce the load of access controller, save wiring to reduce the hidden trouble
Set NC / NO outputs, can control various types of electric locks
Based delay control circuit, lock time can be in 0-15 seconds

Electric Magnetic lock Features:
Collinear Load Test 280kg / 600pounds
MOV Provides Reverse Current Protection
Anti-Residual Magnetism Designed
High Strength Material,Anodized Aluminum Housing
Design without Mechanical Failure
Increase the holding Force,Dual Insulative Housing
CE Certificate by European Union,MA Certificate
LED: Red shows unlocked; Green shows locked

Exit Button:
This exit button widely used in the door access control system.When you want to go out, you just need to press this Exit Button, then you can go out.
