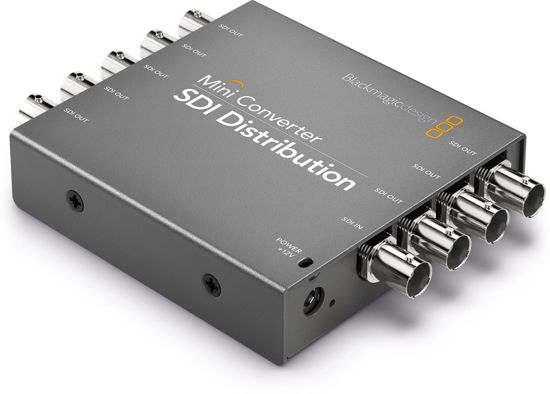

Now you can distribute a single SD or HD‑SDI connection to up to 8 different SDI outputs at the same time! You get a true 3G‑SDI design with fully re‑clocked outputs and automatic switching between all SD and HD formats up to 1080p60. You also get support for all ASI, ancillary, and embedded audio formats. Mini Converter SDI Distribution is the perfect SD/HD SDI distribution converter for when you don’t need the cost of the Ultra HD model. Blackmagic Design SDI Distribution Amplifier Mini Converter is ideal for connecting the same signal to multiple devices at the same time.

Automatic Switching Input

The SDI distribution has an SD, HD and 3Gb/s automatic switching input and provides 8 re-clock outputs. Ideal for connecting the same signal to several devices at the same time. A wide range of video standards are supported including, NTSC, PAL, 1080i / 59.94, 1080i / 50, 1080psf / 23.98, 1080psf / 24, 720p / 59.94 and 720p / 50, plus new formats can be added via USB.

Features

The mini converters feature a single redundant input for mission-critical tasks like broadcasting or live events. The mini converters instantly switch between standard definition and high definition video formats and the switch is automatic when the video input changes.
