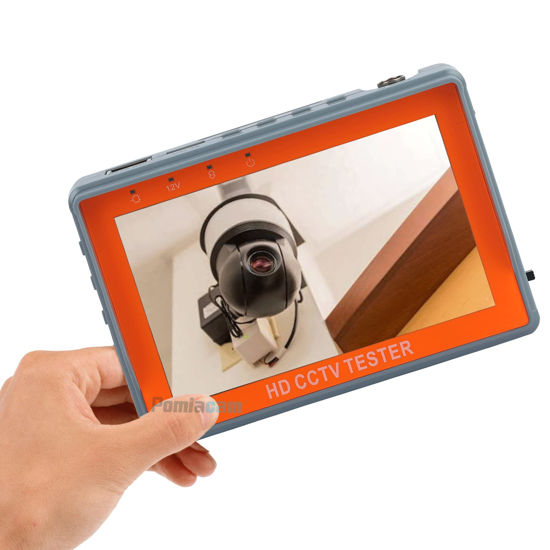

IV5:5inch tester+8MP AHD+8MP CVI+8MP TVI(without HDMI and VGA)

5 inch 800*480 HD screen
Support up to 8MP AHD 8MP TVI 8MP CVI camera test;
Support multi-language;
Support coaxial video control (control PTZ camera through UTC, but cannot call camera menu information)

Key Feature:
● 5-inch LCD 480 * RGB * 272 (QVGA) resolution, 64K color
● Support PAL/NTSC standard video signal. CVBS testing.
● PTZ controller

Support Pelco-D / P PTZ control protocol, etc. , through RS485 interface, the user can control the PTZ up, down, left, right rotation, and adjust one machine zoom, focus, aperture size.

● Audio testing
Test the audio input from pickup devices. Connect the tester and pickup device with the audio cable.

● UTP Network cable testing
Display UTP cable connection status , cable type and the sequence of wires as well as read the number of the test box.

● TVI camera test
HD TVI video surveillance testing, When TVI signal input, the tester will display HD TVI camera image.

● CVI camera test
HD CVI video surveillance testing, When CVI signal input, the tester will display HD CVI camera image.

● AHD camera test
HD video surveillance testing. When AHD signal input, the tester will display the AHD camera image.

● LED lamp
It is useful for the engineer to install and maintain security system at night. LED On/Off pressing button, easy to operate.
