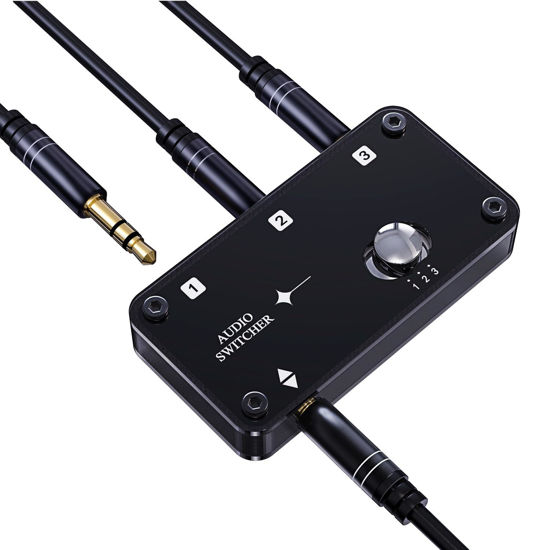

The cooidea audio switcher is a small and delicate 3.5mm audio interface Bi-directional switcher that allows users to conveniently switch between 3 audio sources/playback devices.
By simply toggling the switch, you can easily connect the common channel to either channel 1, 2, or 3

This audio switcher boasts a low-impedance design that delivers high-fidelity audio reproduction while minimizing cable noise.
The device also features a high-quality headphone jack with gold-plated contacts for reliable performance.

This device supports the use of a three-segment headphone jack. If you use a four-segment headphone jack with microphone functionality, it can be used to play audio,
but microphone functionality is not supported.

The Bi-Directional Audio Channel Switcher features a common port and three channels: Channel 1, Channel 2, and Channel 3.

Two operational modes are available:
A. 1x3 Mode (One input to Three output):
1. Connect the audio source (such as a mobile phone, computer, audio player, etc.) to the common port;
2. Connect audio receiving devices (such as headphones, speakers, amplifier inputs, etc.) to Channels 1, 2, and 3, respectively ;
3. Toggle the switch on the switcher to select the desired audio output channel.

B. 3x1 Mode (Three input to One output):
1. Connect audio sources (such as a mobile phone, computer, audio player, etc.) to Channels 1, 2, and 3, respectively;
2. Connect an audio receiving device (such as headphones, speakers, amplifier inputs, etc.) to the common port;
3. Toggle the switch on the switcher to select the desired audio source.

Specifications:
Color :Black
Size:5.8 cm*3.0cm*1.0cm
Weight:17g
