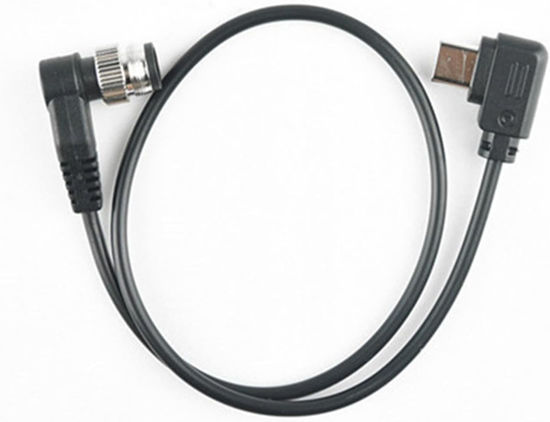

DJI RSS-DC0 release cable

1) Support functions: photo, focus, video

2) Applicable camera model; Suitable for Nikon-D850, d810, d800e, d800, z8, z9 camera shutter Release jack on the side of the lens, round 11-pin hole.

 3) Video function operation method: Set the LV button on the camera, adjust to the video position, and then enter the camera menu Inside, "Custom Settings" - "G4 Specify the shutter release button"; Select - Record animation, then hold The red button on the DJI takes 3 seconds to control the video recording.

4) Applicable to DJI brand stabilizer models :Ronin-sc, Ronin-sc2, Ronin-RS2, RONIN-- RS3,Ronin-RS3 MINI,Ronin-RS3 PRO,Ronin-RS4,Ronin-RS4, Focus Pro

5) Use process: Insert the USB-C terminal into the RSS port on the DJI stabilizer, and insert the circular DC0 plug into the NI Kang camera's shutter release port, turn on to control the photo.

6) Some cameras such as D800, D810, d800e, z8, z9 in the camera menu click - Custom - Animation - Specify Shutter release key - Animation recording. We can control the video with the stabilizer

7) You can adjust the camera 'LV' to the video file, and then enter the camera menu to set "Video/animation. Shutter release button for recording "; You can use DJl to control the video action

8) After inserting the cable, open the DJl stabilizer and use it directly without setting it up. Half press DJI's red button - Camera focus, press down to hold stop for 2 seconds - camera takes photo.

9) Operation method: Gently press (half press) the red button on the DJl to control the focus of the camera, press (press to the end) to hold Three seconds. - Take the picture

10) If the operation does not respond, it may be that the camera lens focus time is too slow to focus, you can turn the mirror Adjust head to MF/M, manual mode.
