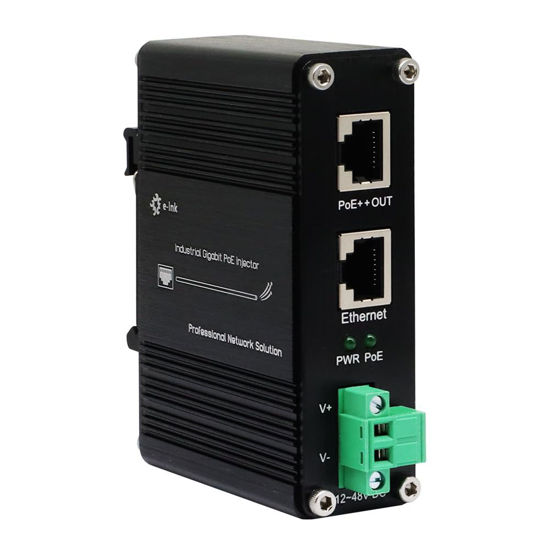

The LNK-INJ-48-60W product is a Hardened Gigabit High Power PoE Injector allows you to connect the PoE device such as camera and access point with a non PoE LAN switch within the distance of 100m.
Both the Ethernet port (to switch) and the PoE Out port (to PoE device) support 10/100/1000Base-T and are compliant with IEEE 802.3ab.
It provides 60W PoE output.

Features:
RJ45 Ethernet Data Input Port + 1 RJ45 Power over Ethernet Output Port (Data + Power)
Support 60W LTPoE++ Power Sourcing Equipment
Compatible IEEE802.3at PoE++
Support 10/100/1000Base-TX
Extensive LED indicators for PoE diagnostics
48~57VDC Terminal Block Power inputs
Supports DIN-Rail and Wall-mount installation
Environmentally Hardened -40°C to 80°C (-40°F to 176°F) operating temperature

Way To Set Up:
a)Connect the LNK-INJ-48-60W to the power supply. Ensure the power supply in connected to a power source and the PWR indicator is ON. If not, please ensure that the power cable is connected properly and the power supply is functioning normally.
b)Connect the Ethernet Port to the network equipment (Switch or PC), Connect the PoE Out Port to the Power Device (PoE IP-CAM).
c)After all cables are correctly connected, the indicators will be lit as per port status LEDs

General Tips:
To ensure trouble free transportation and storage, all products must be thoroughly inspected, tested and well packed before delivery.
Check the product upon receipt for any visible damage which may have been caused during shipping.

Package Content:
1 * 60W PoE Injector
1 * Quick Start Guide
