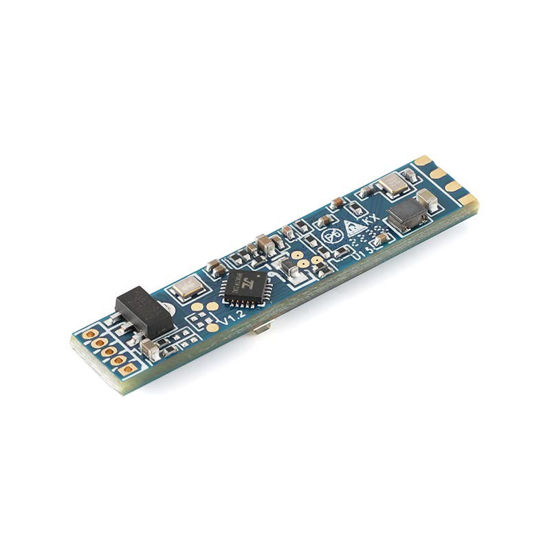

EC Buying HLK-LD2410B Radar Sensor Module LD2410 Smart Human Presence Sensing Radar Module 24GHz Human Presence State Sensing Module Intelligent Sensor with Bluetooth

LD2410B is a high sensitivity 24GHz human presence state sensing module developed by Hailingke Electronics | The module uses FMCW FM continuous wave to realize high sensitivity human presence state sensing, can identify the human body in motion and static state, and can calculate the distance of the target | It has good environmental adaptability, and the sensing effect is not affected by the ambient environment such as temperature, brightness, humidity and light fluctuation | This product is mainly used in indoor scenes to detect whether there is a moving or twitching human body in the area, and output the detection results in real time. The longest induction distance is up to 5 meters, and the range resolution is 0.75m. | It supports GPIO and UART output, plug and play, and can be flexibly applied to different intelligent scenarios and terminal products

Manufacturer: EC Buying

All major credit & debit cards accepted securely:

₹1,359.57

Qty:

Imported from USA to INDIA

Use 220V to 110V Adapter for Electronic appliances

Features:
Plug and play, Easy to install
The maximum sensing distance is up to 5 meters
The probe angle is large, and the coverage can reach ± 60 degrees
Accurate identification within the section, support the division of sensing range, and shield the interference outside the section
Multi-level intelligent parameter adjustment can be realized through Bluetooth or string C to meet the needs of scene changes
Visual debugging and configuration tools
Compact and simple, the minimum size is only 7mmx35mm
Support ceiling, wall and other installation methods
24GHz ISM band
Best value for money

v Performance and electrical parameters
Operating frequency band: 24GHz~24.25GHz
Power supply requirements: DC 5V, power supply capacity>200mA
Average working current: 79 mA
Modulation mode: FMCW
Interface: one GPIO, IO level 3.3V; One UART
Target application: human presence sensing
Detection distance: 0.75m~6m, adjustable
Detection angle: ± 60°
Distance resolution: 0.75m
Sweep bandwidth: 250MHz
Ambient temperature: -40℃ ~ 85℃
Module size: 7mmx35mm, hardware reserve 5 pin holes (without pins)
Pin hole diameter 0.6mm, pin spacing 1.27mm

Pin definition
OUT: human body detected: output high level; No human body: output low level
UART_ Tx: serial port Tx pin
UART_ Rx: serial port Rx pin
GND: power ground
VCC: power supply input 5V
