Description：

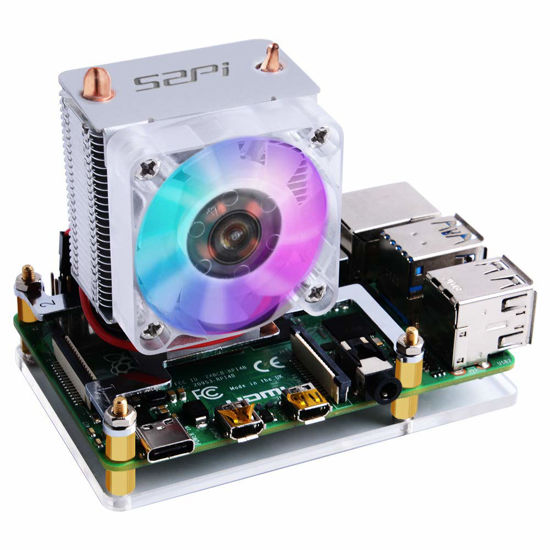

According to Moore's law, the design of high-speed and high-density printed circuit board (PCB) is becoming more and more complex. Higher processing performance will generate more heat. This super ICE Tower CPU Cooling Fan for Raspberry Pi is burned for solving heat dissipation problem!
Tower structure, 5mm copper tube, multi-layer heat sinks, 7 blades powerful fan, all the above combinations make this super radiator for Raspberry Pi. In the case of overclocking, it can reduce the temperature of the Raspberry Pi from 80℃ to 40℃. Best of all, this super cooling fan support both Raspberry Pi 3 and the new Raspberry Pi 4. When the fan turns up, you will see the color of ice. Blue LED lights show the concept of ice, It's the origin of its name.

How to assemble：

Raspberry Pi 3B+
1.Fixed the steel mounting fixer to radiator's heat dissipation cube with M2.0 screws
2.Fixed the steel mounting fixer to Raspberry Pi 3B+’s mounting hole with M2.5 copper stick, and please make sure the heat dissipation is contact to CPU shield properly.
3.Fixed the copper stick to Raspberry Pi with M2.5 nuts.
4.Connect the red wire to GPIO 5V pin and black wire to GPIO GND pin.

Raspberry Pi 4B
1.Fixed the steel mounting fixer to radiator's heat dissipation cube with M2.0 screws
2.Fixed the steel mounting fixer to Raspberry Pi 4B’s mounting hole with M2.5 copper stick, and please make sure the heat dissipation is contact to CPU shield properly.
3.Fixed the copper stick to Raspberry Pi with M2.5 nuts.
4.Connect the red wire to GPIO 5V pin and black wire to GPIO GND pin.

Package Include:
1 x Ice Tower radiator and Fan
2 x Steel Mounting Fixer
2 x M2.0 Screws
Assembling Video:
https://youtu.be/FciNotr6d6g
