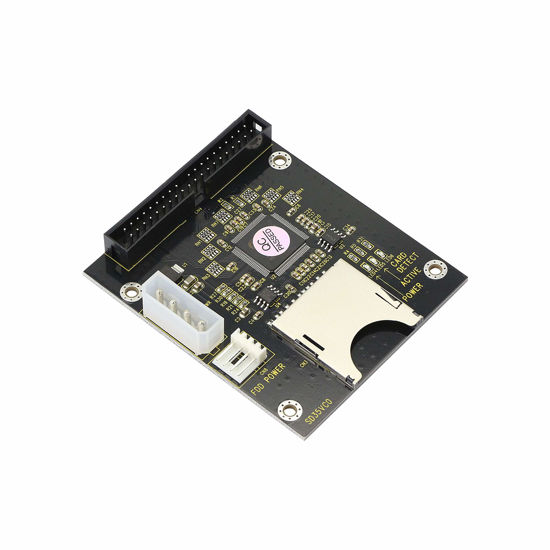

Product Name: SD to desktop ide card
SD card has the characteristics of small size, large capacity, anti-seismic and moisture-proof, high-temperature resistance, stable performance, permanent and effective data storage, no noise, no seek error. Memory card is a popular mainstream product nowadays.
This adapter card allows you to connect the SD card with this advantage to the standard ATA IDE interface, when the standard ide storage device.
Product specification:
A standard ide 3.5 'interface;
A standard SD socket;
A standard large 4Pin power connector.
Connection Description:
1. The power supply stand can be powered by hard disk. The card only needs 5V power supply, and the normal working voltage is 5V ± 0.25V. The working current is less than 200mA.
2. For IDE socket, please select 80 pin hard disk connection cable. This card supports PIO, multi word DMA and ultra DMA host data transmission mode;
3. SD socket supports up to 8GB SD card.
After connecting the power supply and IDE cable and inserting SD card into SD socket, the converter board is equivalent to an electronic hard disk without installing driver. After installing the operating system, the operating system (such as Windows 98) can be started through SD memory card.
The data transmission rate is high, which is roughly the same as the system hard disk speed (ATA / 133, u-dma Mode3).
