Supported VGA input resolutions: 640x480 (up to 85Hz), 800x600 (up to 85Hz), 1024x768 (up to 75Hz), 1280x1024 (up to 60Hz) and 2560 x 1600 (up to 60Hz).
Adjustable NTSC, PAL, PAL-M, PAL-N and SECAM formats.
Input port:
VGA input
Output port: Video output
Video output
VGA output
Power port:
DC 5V 1A
Image control: horizontal and vertical size, brightness, contrast, hue, saturation, resolution
No driver is required. Compatible with Windows and Macintosh operating systems
Although the VGA to AV converter supports hot swapping, for safety reasons, please disconnect the converter and all power from the connected devices before connecting.
Common problems and their solutions (temporary reference):
1: No display:
Check whether the connecting wire is correctly connected, whether the output terminal and input terminal are connected in reverse, and whether the power supply is correctly connected. The resolution of the test computer can be set to 800 * 600, and the refresh rate is 60HZ. Please pay special attention to the fact that desktop computers generally have too high resolution, which causes the TV to not support display.
2: Show snowflakes:
Usually current interference. The solution can be to plug and unplug the USB power cord again. Or unplug all cables, connect the USB power supply first, and then connect the AV and vga cables.
3: There are still images on the TV, but no dynamic images:
The hard drive is incorrect, re-download the hard drive.

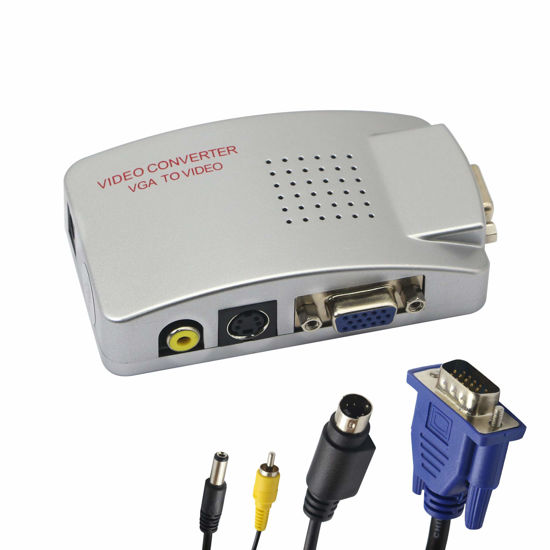

VGA to VIDEO/SVIDEO/VGA video converter x 1
USB cable x 1
VGA male to male cable x 1
RCA composite video x 1
S video cable x 1
