NOTE :

●You are kindly reminded that this adapter ONLY support M.2 SSD. DO NOT support SATA3 SSD or any SATA devices!

●You are kindly reminded that the 7-pin SATA cable must be connected to motherboard if you want to read the M.2 SATA SSD (Key B).

●You are kindly reminded that this adapter only support PCIe X4 X8 X16 slot. DO NOT support PCIe X1 slot.

●If there is a exclamation mark after install the adapter, please ask for SSD supplier to supply the NVME driver for SSD

Specifications:

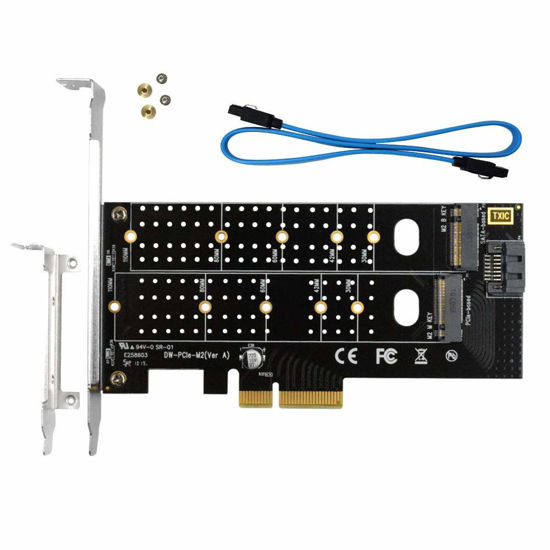

1.Connects one B key & one M key NGFF SSD at the same time to PCI-E 4X motherboard

2.Compliant with PCI Express M.2 specification 1.0

3.Compliant with SATA 3.0 specification for B key

4.Compliant with PCI-E 4X 3.0 specification for M key

Supports:

1.Supports data transfer up to 6.0Gb/s

2.Supports SATA-based B key and PCI-E 4X-based M key NGFF SSD

3.Supports 2230, 2242, 2260 & 2280 size NGFF SSD

Features:

1. One NGFF B Key and one NGFF M key sockets available

2. 8 screw holes 2230/2242/2260/2280/22110 available to fix NGFF SSD cards

3.Easy installation & no driver required

4.No additional power required

Support boot function

Supports any OS, like Windows, WinCE, Mac & Linux etc.
