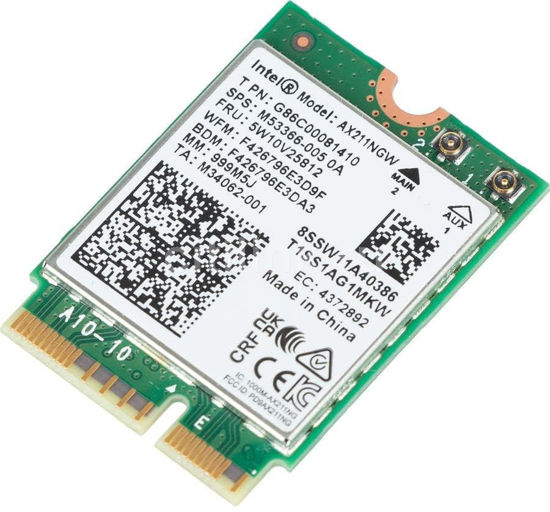

AX211NGW adapter Wi-Fi 6E (Gig+) Series products support dual-stream Wi-Fi in the 2.4GHz, 5GHz and 6GHz bands, and include improved TCP throughput exceeding 2Gbps and future Wi-Fi 6 R2 features that maximize the benefits of Wi-Fi 6, including Gigabit speed, ultra-low latencies, and enhanced reliability benefits across new radio frequencies exclusive to Wi-Fi 6E devices. Module is 22x30mm and should only be used in Laptops with an M.2 connector and a standard Key A or E socket. It WILL NOT work in the M.2 slot in a Desktop. Specifications: Model: AX211NGW D P/N: G83J7, 0G83J7, CN-0G83J7 Board Form Factor: M.2 2230 CNVIo2, M.2 1216 Antenna connector: IPEX 4 / iPX4 Connector Wireless data rate: - 5GHz, 6GHz up to 2400Mbps (You router must support 802.11AX) - 2.4GHz up to 574Mbps (160MHz) Max speed: If your router support 802.11AX, the max speed up to 2.4Gbps Streams: 2X2 Bluetooth: Bluetooth 5.2 Antenna Diversity: Supported MU-MIMO: Yes Frequency: Dual Band 2.4/5GHz/6GHz IEEE WLAN Standard: IEEE 802.11a/b/g/n/ac, 802.11d, 802.11e, 802.11h, 802.11i, 802.11w, 802.11r, 802.11k, 802.11v Wi-Fi CERTIFIED: Wi-Fi 6E Operating Systems: Windows 10 64-bit, Windows 11 64-bit. (NOt support Windows 7/8/8.1) Dimension (H x W x D): 22 x 30 x 2.4 mm, 12 x 16 x 1.65 mm Features: - Wi-Fi 6E technology, extends Wi-Fi 6 to 6GHz. 2400 Mbps @ 6GHz , 2400 Mbps @ 5GHz , 574 Mbps @ 2.4GHz - BT 5.2 version, backward compatible with BT 5.1/BT 5.0/4.2/4.0 - Only recommend to use Windows 10, 64 bit. Windows 10 version updates to newest version is required if driver cannot be installed. - WiFi 6E router is required to enable 6GHz band. - Wi-Fi Alliance: Wi-Fi Certified 6, Wi-Fi Certified a/b/g/n/ac, WMM, WMM-Power Save, WPA3, PMF, Wi-Fi Direct, Wi- Fi Agile Multiband - Works with Intel CPU and Newer AMD CPU. Do not use on a motherboard contains an Intel 9560 CNVi module. - Downloading the driver from the Intel website. What's in the Box 1x AX211NGW M.2 CNVIo2 WiFi Card
