1602 LCD module read and write operations, screen and cursor operations are programmed to achieve through the instructions.
Note: 1- High level, 0 -Low level）
Instruction1: clear display, instruction 01H, cursor reset to address 00H position.
Instruction 2: The cursor is reset and the cursor returns to address 00H.
Instruction 3: Cursor and display mode setting I / D: cursor movement direction, high level shift right, low left shift S: whether all the text on the screen left or right. High level is valid, low level is invalid.
Instruction 4: Display switch control. D: control the overall display of the open and close, high level that open display, low level that off display C: control the cursor on and off, high level that has a cursor, low level that no cursor B: control whether the cursor Flashing, high level flashing, low level does not blink.
Instruction 5: Cursor or display shift S / C: Move the displayed text at high level, move the cursor at low level.
Instruction 6: Function setting command DL: 4-bit bus at high level, 8-bit bus at low level N: Single-line display at low level, double-line display at high level F: 5x7 dot matrix character when low level is displayed, High-level display of 5x10 dot matrix characters.
Instruction 7: Character generator RAM address setting.
Instruction 8: DDRAM address setting.
Instruction 9: read busy signal and cursor address BF: busy flag, high level that busy, then the module can not connect Receive the command or data, if the low level that is not busy.
Instruction 10: Write data.
Instruction 11: Read data.

Package Included:

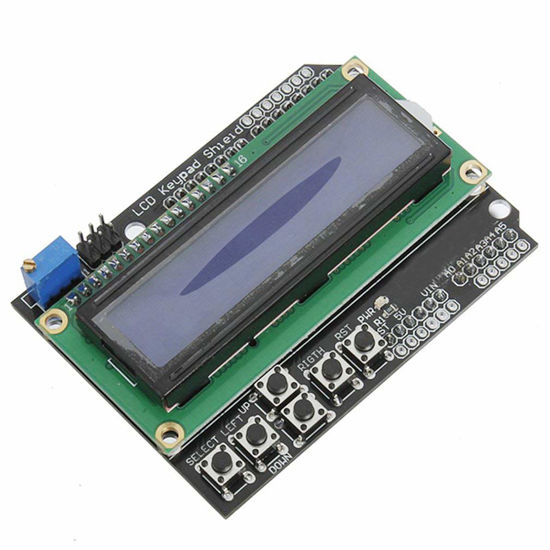

1* LCD1602 Input / Output expansion board LCD Keypad Shield
