This product is a system that uses Sony NP-F series battery as the power supply, and converts a variety of different voltages and power interfaces through this product. With a variety of voltage outputs, as well as a variety of interface outputs, with good heat dissipation performance, equipped with a variety of fixed methods. It is an efficient and practical multifunctional power system. The Type-C input can charge NP-F series batteries.

Compatibility:
For BMPCC 4K 6K Cinema Camera and Canon EOS 5D2 5D3 5D4 6D 6D2 60D 7D 7D2 70D 80D 90D 5DSR Cameras.

Notes:
1. Pay attention to voltage input and output parameters and interfaces to avoid damage to equipment and products.
2. In order to ensure the service life of the battery and components, the battery should be removed when not in use.
3. Do not store this product in a place with high temperature or humidity.
4. Do not use this product in an environment where the temperature is higher than 55°C or -20°C.
5. When this product works for a long time, please do not touch it to avoid burns.

Specification:
Battery input: NP-F550/F770/F970/F570
Type-C input: PD3.0 5V/9V/12V/15V/20V

DC8V output (two): 8V 3A 5.5*2.1mm
DC12V output: 8V 3A 5.5*2.1mm
Type-C output: PD 5V/9V/12V/15V/20V/45W

Plate material: shell ABS+ metal aluminum plate
4K cable size: DC12V/2A 5.5*2.5mm
DC coil wound wire size: 8V/12V 5.5*2.5mm-5.5*2.5mm

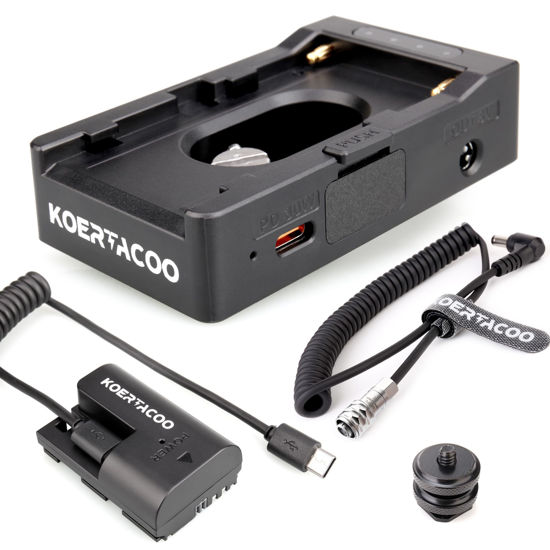

Package includes:
1 x NP-F battery plate
1 x BMPCC 4K/6K DC cable
1 x LP-E6 dummy battery
1 x DC male-to-male coiled cable
1 x 1/4" shoe stand
1 x Type-C to Type-C cable
1 x Storage Pocket
