ITEM ID:AN_GPS_A236

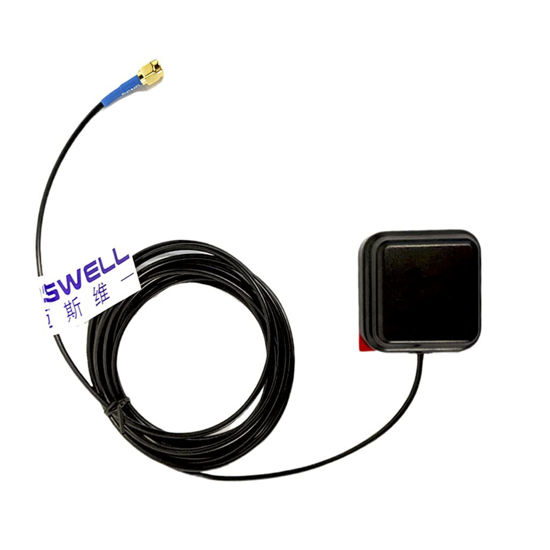

MASWELL GNSS antenna square magnet and 3M adhesive mount SMA male for GPS/GLONASS/Beidou/Gaileo GPS Antenna L1 bands 3meters 9.8feet cable length
Center Frequency:1561.098~1602MHz
Polarization: RHCP
Gain: 5dBic@PCB（Zenith）
V.S.W.R: <1.5
Impendance: 50Ohms
Axial Ratio: 3dB(max)

LNA
Gain :28±2dB
Noise Figure:≤1.5dB
V.S.W.R: <2.0
Supply Voltage: 3~5V DC
Current Consumption<20mA

Mechanical
Cable:RG174
Connector: SMA male
Radome Material：ABS
Mounting Method : Magnet

Environmental
Operating Temperature：-40℃~+85℃
Relative Humidity : Up to 95%
Ingress Protection：IP67
Vibration:10 to 55Hz with 1.5mm amplitude 2hours
Environmentally Friendly:ROHS Compliant

【GNSS 4 Satellite Frequency Bands】: GPS L1, GLONASS G1,Beidou B1, Gaileo E1 Bands included. Ideal for GPS signal boosting of the GPS device or other IoT devices!

【PREMIUM QUALITY ANTENNA】: Our Omni-Directional Magnet Mount Antenna is made from durable material - reinforced plastic, copper wire. It will be a professional, durable accessory!

【MULTIPLE Applications】:multi-purpose wireless device signal reception (CPE, GPS Navigation, Mobile internet , Precise GNSS survey etc.)

【IP67 WATERPROOF】: This antenna is completely waterproof (IP67) . Ideal for use outdoors, in vending machines, meter housings, equipment sheds, or other locations requiring a low-profile HIGH PERFORMANCE external antenna.

【SMA male and High Quality 3 meters 9.8 feet Cable 】The antenna comes with a 3 meters/9.8 feet RG174 lead for extreme outdoor applications. Easy to install via both Magnet and Adhesive Mounting methods indoor or outdoor.
