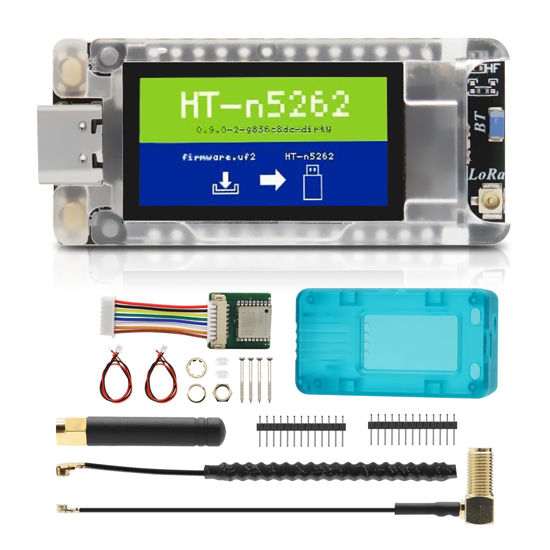

Mesh Node T114 V2 LoRaWAN Meshtastic Board AYWHP Meshtastic Tracker Nordic nRF52480 with Screen GNSS + Screen Case 1.9″ TFT Display 902-928MHz SX1262 Chip BLE WiFi Compatible with Arduino/Meshtastic

High Compatibility: Compatible with Meshtastic and Arduino, this mesh node T114 V2 development board uses the powerful LoRaWAN SX1262 chip for long-range communication. Perfect for low-power applications. | Power Efficiency: With deep sleep current as low as 11uA, this mesh node T114 V2 board is designed for optimal power efficiency, making it ideal for battery and solar-powered projects. | Multiple Interfaces: Equipped with USB 2.0, LiPo battery connectors (21.25mm), solar panel connectors (21.25mm), and GNSS module connectors (81.25mm), offering strong expandability and compatibility. | Easy to Connect: Simple plug-and-play GNSS connectors allow for fast and easy connections and disconnections, enhancing the versatility of your project setups. | Versatile Display: Features a 1.14" high-resolution TFT-LCD display (optional), offering clear visuals with a 135(H)RGBx240(V) resolution and 262K colors.

Manufacturer: AYWHP

All major credit & debit cards accepted securely:

₹6,065.37

Qty:

Imported from USA to INDIA

Use 220V to 110V Adapter for Electronic appliances

Product Description:

Themesh Node T114 V2 is a development board based on LoRaWAN technology, using the NRF family of chips and supporting low-power communication protocols, especially for remote wireless networks and Internet of Things (IoT) applications.

It is compatible with Meshtastic software and also supports the Arduino development environment.

Specifications

MCU：nRF52840

LoRa Node Chip：SX1262

Max. TX Power：21±1dBm

Max. Receiving sensitivity：-135dBm@SF12 BW=125KHz

Bluetooth：Bluetooth LE: Bluetooth 5, Bluetooth mesh

Hardware Resource：USB 2.0, 4 * SPI, 2 * TWI, 2 * UART, 4 * PWM, QPSI, 12S, PDM, QDEC Etc.

Memory：1M ROM; 256KB SRAM

Interface：Type-C USB; 2*1.25 lithium battery connector; 2*1.25 solar panel connector; LoRa ANT (IPEX1.0); 8*1.25 GPS module connector; 2*13*2.54 Header Pin.

Battery：3~4.2V battery power supply and charge.

Operating Temperature：-20 ~ 70 ℃

Electrical characteristics：Deep Sleep: ~11uA; Tracker mode sleep: ~22uA; GPS OFF, TFT OFF: ~9mA; GPS OFF, TFT ON: ~20mA; GPS ON, TFT ON: ~51mA.

Display：onboard 1.14 inch TFT-LCD display

Packing list：

1 X Mesh Node T114 V2 for Meshtastic

1 X LoRa Antenna

2 X SH1.25×2 Battery Connector

2 X 2.54 *13 Header Pin

1 X Screen Case

1 X Screen GNSS
