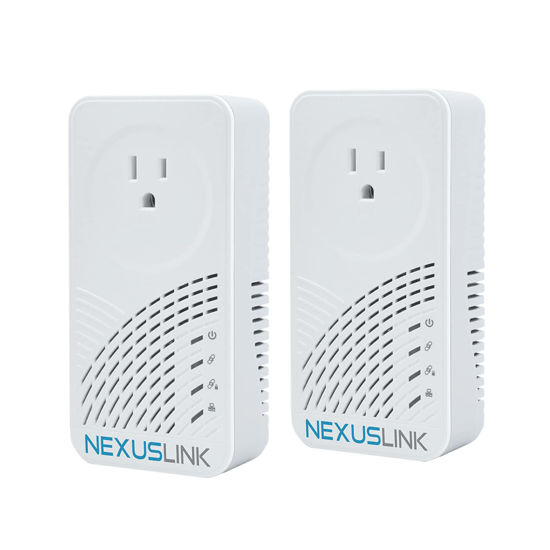

NexusLink’s GPL-2000PT G.hn Powerline Adapter with a Pass-Through Outlet is a G.hn-based Powerline device designed to give users a better alternative to connect devices within a home or business network. Using existing electrical wiring and Powerline technology, devices can now be connected at wired speeds without expensive rewiring with Ethernet (CAT5e/6) cables. With new G.hn technology, real world Powerline performance is significantly improved over current Powerline standards. G.hn minimizes the line of interference and maximizes video throughput.

Specifications

Interface

• RJ-45 for Ethernet Connection
• LED Indicators, Power, G.hn, Security (PLC), LAN
• Butoons: G.hn pairing, RESET

Ethernet

• Standard IEEE 802.3u, 802.3ab
• One 10/100/1000 BaseT Ethernet Port
• Auto Rate and Duplex Negotiation
• MDI/MDX Support

Modulations

• OFDM
• FEC
• Flexible Frequency Configuration

Management

• HTTP Web-based Management
• Firmware Upgrade via TFTP

Security

• AES 128 Bits Encryption Ensures Total Data Security
• One Button Security Set-Up
• Configuration Button for Factory Reset

Networking Protocols

• 802.1D Ethernet Bridge
• 802.1Q VLAN
• Quality of Service (QoS)
• IGMP(IPv4) Snooping & MLD(IPv6) Snooping

Power

• 100-240 VAC 50Hz/60Hz

Environment Conditions

• Operating temperature: 0 ~ 40 Degrees Celsius
• Relative humidity: 8 ~ 95% (Non-condensing)

Certifications

• FCC, HomeGrid Forum, cUL, CE, ITU-T G.hn Standard
