Description:
1.POE (Power Over Ethernet) refers to the existing Ethernet cabling infrastructure Cat.
2.It do not make any alteration of the circumstances, for a number of IP-based terminals (such as IP telephones, wireless LAN access point AP , network cameras, etc.) to transmit data signals at the same time, but also for the provision of DC power supply such equipment technology.
3.POE technology to ensure the safety of the existing structured cabling at the same time to ensure the normal operation of the existing network, minimizing costs.

Specification：
Voltage Input:
Nominal Voltage: AC 100-240V;
Variation Range: AC 90-264V.
Output: DC24V / 0.5A;
Output Power: 12W;
Input Frequency:
Nominal Frequenacy: 50-60Hz;
Variation Frequenacy: 47-63Hz;
Combined Load / Line Regulation:
Line Regulation: ± 3%;
Load Regulation: ± 5%;
Operating Temperature:-10 ℃ ~ 40 ℃, Full Load Normal operation;
Storage Temperature:-10 ℃ ~ 85 ℃, With Package;
Relative Humidity:5% (0 ℃) ~ 90% (40 ℃) RH, 72Hrs, Full Load Normal operating.
Shell material: temperature PC + ABS (90-100 ℃);
Pin material: copper;
Fire rating: V1-V0.
Network interface: RJ-45;
POE port:
Connect the bridge, AP, CPE equipment WAN interface
Power supply: 4,5 pin positive, 7,8 pin negative; 1,2,3,6 signal pins;
LAN port:
Connect a router, switch, or directly connect to the host computer network interface;
1,2,3,6 signal pins.

Package Included:

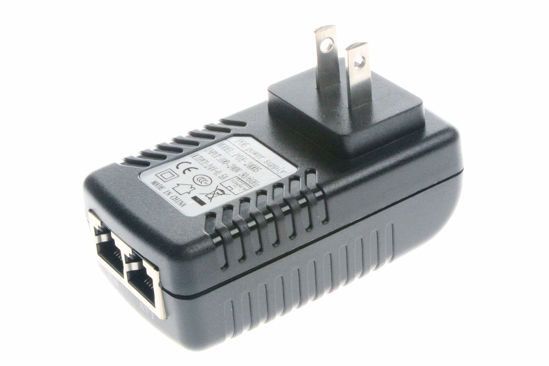

1 pcs NOYITO 24v 0.5A POE Power Supply
