Features :

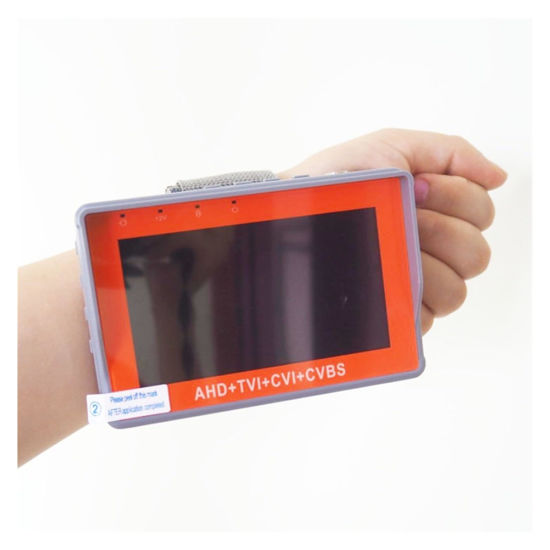

Model: IV7W
Support TVI Cameras :5MP, 4MP, 3MP, 1080P, 720P;
Support AHD Cameras :5MP, 4MP, 3MP, 1080P, 720P;
Support CVI Cameras :1080P, 720P;

Analog cameras=video testing updated model
1. video tester
Video System: NTSC/PAL Automatically recognize
Video level: 1VPP

LCD backlight brightness adjustable
Video input / output: 1 channel BNC Video IN
2. HD AHD ,TVI Test
SD signal Format: NTSC,PAL
Video signal: HD AHD,TVI,CVI,CVBS
Resolution : D1,720P,960p,1080P,3MP,4MP,5MP
MAX Support 5MP,4MP AHD 20FPS ; 5MP 4MP TVI 20FPS
Signal Level: 1Vpp
3. 12V power output
Power output:
Temporary power output 12V 1A D

USBX1 5V1A output
4. test
test: Input signal, and played on the internal speaker
5. Power supply
External power supply: DC 5V(2A)
Battery-powered: Built-in 3.7V li-polymer battery, Capacity 2600mAh
Charge: Charge time 3-4 hours Battery power time 8 hours
Power saving features: Low power consumption, automatic power off, Real-time display of battery level
6. System
Language : English
Auto power off: Disable / 5-60 minutes
7.Cable test
cable test: Test any two or more wire cable Display connect sequence and remote number
LED Light: 1*35lm LED light
Working environment and Specifications: -20---+70/30%-90%R

Packing List:
HD AHD+TVI+CVI+CVBS CCTV Tester x 1
AC/DC Adapter x 1
Power Output Cable x1
Transformer x 1
A/V Cable x 1
Video Cable x 1
Date Cable x 1
Wristbands x 1
