Product Overview:

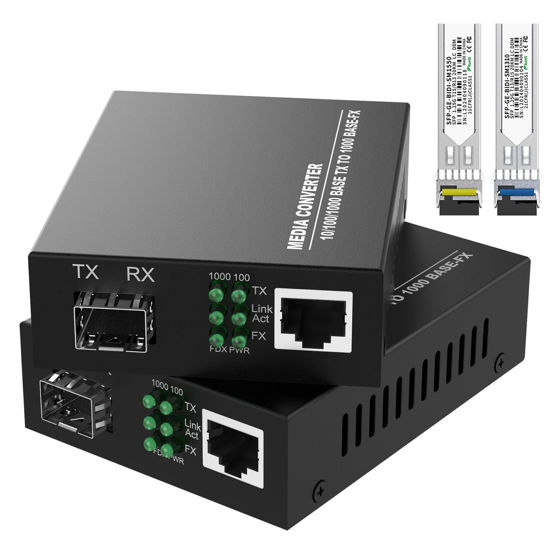

Transform and extend your network effortlessly with this comprehensive Gigabit Ethernet Fiber Media Converter Kit. This set includes 2 single-mode Gigabit Ethernet fiber media converters, each equipped with a BiDi SFP slot LC transceiver module, supporting transmission distances of up to 30 km over single-mode fiber (SMF). The kit also comes with two DC power adapters (5V DC/1A), a detailed product manual, and a multi-language quick installation guide, making it an ideal solution for network expansion in enterprise, data center, and campus environments.

Key Features:
1. High-Speed Gigabit Connectivity:
Each media converter supports 1.25Gbps data rates, providing seamless conversion between 10/100/1000Base-TX copper and 1000Base-LX fiber optics. The SFP port connects to the included BiDi transceiver, enabling a long-distance, high-speed network bridge.
2. Dual-Port Design for Versatile Use:
Equipped with both SFP and RJ45 ports, the media converters allow easy integration into existing networks. The RJ45 port supports 10/100/1000M auto-negotiation, ensuring compatibility with various devices and network speeds.
3. Reliable Performance in Challenging Environments:
Designed with a single-mode fiber (SMF) and single LC fiber connector, these converters operate on a 1310nm wavelength and support data transmission up to 30 km. The robust metal enclosure, air-vent design, and superior heat dissipation capabilities ensure low power consumption, reliable operation, and a long service life.
4. Safety and Durability Built-In:
The included DC power adapters meet UL/EN60950 and GB4943 safety standards, supporting a wide input voltage range (AC100V~240V). The converters also feature lightning protection, high anti-interference ability, and low power dissipation (≤3 watts), making them ideal for secure and stable network connections.
5. Compact and Easy to Install:
With a standalone design and compact dimensions (95x72x27mm), these media converters are easy to install and offer flexible mounting options. The plug-and-play setup requires no software installation, and the converters are hot-swappable for easy maintenance and troubleshooting.

Wide Range of Applications:
- Network Extension and Bridging:
Extend or bridge networks across long distances using fiber cables, perfect for large complexes, campuses, or remote buildings.
- Secure and Isolated Connectivity:
Provides connectivity in isolated areas or in buildings where EMI is not acceptable, ensuring a secure and stable network for government, corporate, and sensitive applications.
- Versatile Deployment:
Ideal for deploying high-speed fiber optic networks in environments that demand low electromagnetic interference and require robust, high-quality network infrastructure.

LED Status Indicators:
- FP (Fiber Port Speed): Lights up when the fiber speed is 1000Mbps.
- TP (Twisted Pair Port Speed): Lights up when the TP speed is 1000Mbps.
- Link/ACT: Indicates link and activity; flashes when data is transmitting and receiving (left for fiber port, right for TP port).
- FDX (Full Duplex Mode): Lights up when TP is in full-duplex mode, off when in half-duplex mode.
- PWR (Power): Lights up when DC power is on, otherwise off.

Product Specifications:
- Operating Temperature: 0°C to 60°C;
- Storage Temperature: -20°C to 70°C.
- Humidity Range: 5% to 90% RH (non-condensing), ensuring reliable performance in a variety of environmental conditions.

What’s Included in the Package:
- 2 x Single-Mode Gigabit Ethernet Fiber Media Converters: Provides seamless fiber-to-copper network conversion.
- 2 x BiDi SFP Slot LC Transceiver Modules (1310nm/1550nm): Supports up to 30 km transmission distance on single-mode fiber (SMF).
- 2 x DC Power Adapters: Output voltage 5V DC/1A, UL certified for safe and reliable power supply.
- 1 x Multi-Language Quick Installation Guide and User Manual: For easy and straightforward setup.

Why Choose This Media Converter Kit:
This Gigabit Ethernet Fiber Media Converter Kit offers a complete solution for extending and securing your network over long distances. With its plug-and-play design, superior heat dissipation, lightning protection, and compact size, it ensures a reliable, high-speed network connection with minimal setup and maintenance. Ideal for enterprises, data centers, campuses, and any environment where secure, stable, and long-distance fiber optic connections are needed.
