PoE Injector Adapter, Comply with IEEE 802.3af Power over Ethernet;
10/100M Supported;
Extender the range of PoE an additional 120 meters;
Automatically detects and protects PoE equipments from being damaged by incorrect installation;
Plug-and Play no configuration required;

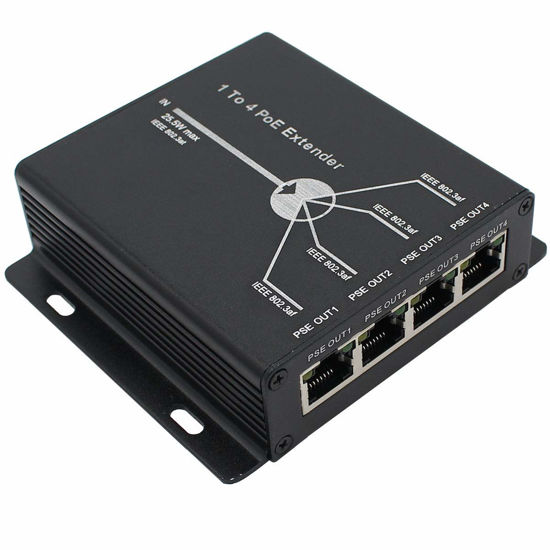

4Port PoE extender can forward both ethernet and PoE power for 4 terminal equipment via Cat5 UTP cable.

Product Review:
4-Ports PoE Extender has 5 10/100M PoE ports,among them,1port for power input,and others for power output. Comply with 10/100BASE-TX,IEEE802.3at(power-in)/IEEE802.3af(power-out). The power input is 25.5W in total;Power output for single port is 15.4W(MAX).
PoE Extenders can increase the transmission distance for Ethernet data and PoE power up to 120m via Cat5 UTP cables. It offers you great flexibility to extand the distance of PoE.

Other Specification:
Port Description: PoE input-1 RJ45 port, PoE output: 4 RJ45 port;
Network Medium: Cat5 or better UTP cables (less than 120m);
Repeater Mode: Store and forward;
MAC Address Table: 2K;
Packet Buffer Memory: 48 Byte;
Switching Capacity: 400Mbps;
PoE Standard: IEEE 802.3at (power-in),IEEE 802.3 af(power-out) ;
PoE Port Power: input power-25.5Watts,output power-24Watts;
PoE Power Supply Type:1/2(+),3/6(-),Mode A,End-Span;
Network Protocol: IEEE 802.3i-10BASE-T, IEEE 802.3u: 100BASE-TX, IEEE 802.3x-Flow Control, IEEE 802.3af-Power over Ethernet;
Regulation Compliance: FCC Part 15B, ROHS Directive 2011/65/EU,Low Voltage Directive 2014/35/EU,EMC Directive 2004/108/EC;
Working Temperature: 0°C~40°C,Working Humidity: 10%~90%,No Condensation,Storage Temperature: -30°C~70°C,Storage Humidity: 5%~90%, No Condensation;
Dimension:105*93*28.5mm.

Note:
To prevent the water seeping into the extender,please keep PoE extender away wet environment.
Package Include:
1x 4-Port 10/100M PoE Extender
