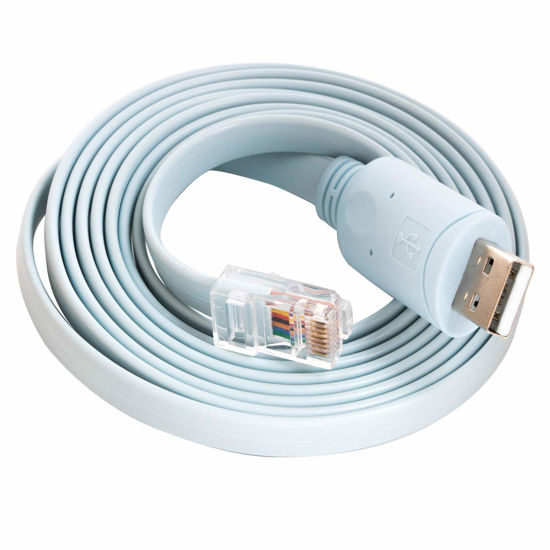

USB RS232 console cable for cisco router, huawei, fortinet router, switch
2 in 1, more convenient, more stable
1.8mtr console cable
This cable is also called a Rollover Cable. You may need use a special SSH application like puTTY to interface with the router’s console.
PL2303RA usb RS232 chip
Please note the old version DB9 RS232 to RJ45 console cable with the same function, but not for UsB port(for DB9M), no chip inside!!!
Support Android, support Win 7, 8, 10, mac
USB RS232 to RJ45 USB console cable
Update the cab-console-rj45
Update the DB9 to RJ45 console cable as most PC, tablet pc, notebook, mobile phone, mobile pc without DB9

USB2.0, USB1.1 compatible
USB RS232 serial console cable
USB serial COM port to RJ45 male for router setting and controlling
PL2303RA chip
Pin assignment at USB RS232-RJ45 male cable side:

1-CTS,
2-DSR,
3-RXD,
4-GND,
5-GND,
6-TXD,
7-DTR,
8-RTS

Flat cable, 28AWG*8 core, bare copper. 3.6m
Win 7, Win 8, Win 8.1 win 10 free driver installing
Supports hardware flow control used to implement the CISCO break sequence
UART interface support for 7 or 8 data bits, 1 or 2 stop bits and odd /
USB 2.0 Full Speed 12M
Support Android, Support Win10, 8, Win 7, XP, 2000, Linix, Mac OS, Macbook pro, Android
Intergrated 1024 byte EEPROM, support Vendor ID re-write,support Mprog3.5
Support usb rs232 driver
Updating for cisco db9 RJ45 console cable
PE bag for each.
Net weight: 66g/pcs
Package: 1 X PL2303RA USB RJ45 RS232 SERIAL CONSOLE CABLE
