Description:

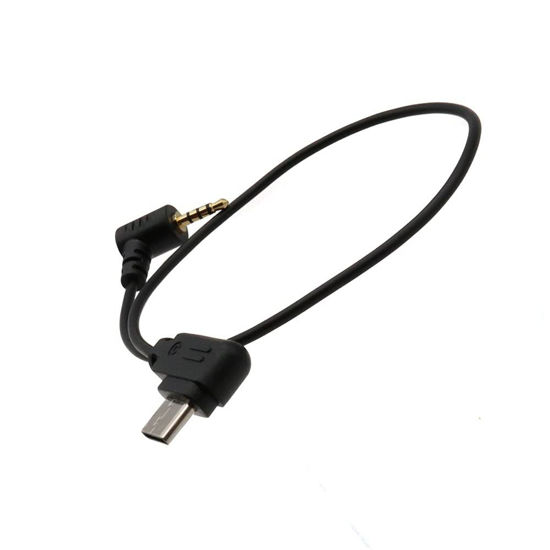

This Shutter Release Cable is used to connect for Ronin SC to the 2.5mm Port on specified cameras to control the camera

To control the camera's video recording and photo functions, as well as to trigger the autofocus function.

Specification

Color: Black

Material: PVC

Total Length: About 9.84 inch (25cm)

One End: USB-C, also called Type-C

Another End: 2.5mm

Function: shutter, focus, video, other function included in the app

Lightweight and Durable, easy to carry.

Suitable for:

RSS Control Cable for DJI Ronin SC stabilizer

Camera for Panasonic GH3 GH4 GH5 GH5S G85 G9

How to use:

When it is connected to Panasonic camera:

1. When the dialog page is displayed, select the PC (Tether) mode.

2. Switch the built-in focusing mode switch to MF to use the electronic focusing function.

3. Switch the built-in focus mode switch of the body to AFS/AFF/AFC, etc., and trigger the automatic focusing of the camera through the camera control button.

4. Attention: When the camera is playing back, triggering the electric focus may cause the camera to crash.5. After completing the cable connection, Turn on the stabilizer, then turn on the camera.

Package included:

 Ronin-SC RSS Control Cable for Panasonic × 1
