Note:
1.This product only apply to those device that have CC Pin and PD2.0/3.0 protocol.
2.To those Smart Phone and Tablet produced before 2016 may not work with this product. Becuase there is not unified USB PD standard that time.
3.Laptop normally required at least 20V/3.25A (65W), this product deliver output 5V/2.4A(10W), it is not enough for laptop. Therefore this product only supply stable Ethernet when connect to laptop.

Overview：

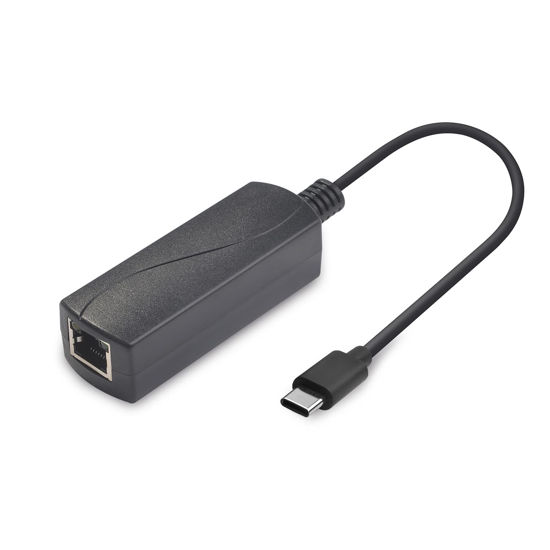

P2C5V POE to USB-C adapter applies to those Type-C device with CC Pin and support PD2.0/3.0 protocol. Provied stable wired broadband Internet access and 5V/2.4A PD charging for Smartphone/Tablet. the network provide by P2C5V is faster, more stable and ultra-low delay, good for live broadcasting. Help you get rid of instability WIFI like delay, dropped connections, poor signal.

Features:
Plug and Play, no configuration required.
Support Windows, Android, HarmonyOS, iOS and other system.
Support IEEE802.3af standard, 10/100Mbps data transmission.
Support isolation circuit protection, short circuit protection, over voltage protection. Effectively portect your equipment.
Support PD 44-57V voltage, auto-detects power supply from PSE power supply module.
Type-C port 5V/2.4A power output
1500V high voltage isolation

Specifications:
Model: P2C5V
Transfer Rate: 10/100Mbps
Power: Input DC 37-57V, Output 5V/2.4A(USB 2.0)
Standard: IEEE802.3af
Interface Type: 1 Input RJ45 port, 1 output DC port (Type-C)
Standard: IEEE 802.3 I, IEEE 802.3 u, IEEE 802.3 x, IEEE 802.3 af,
LED: Yellow PoE lamp
Temperature: Work within -20~50°
Humidity: Work within 10%~90% (Non-condensing)
Dimension: 28.5cm x 2.8cm x 2.4cm
Weight:50g

Package Content:
POE Type-C Driver (P2C5V) * 1
