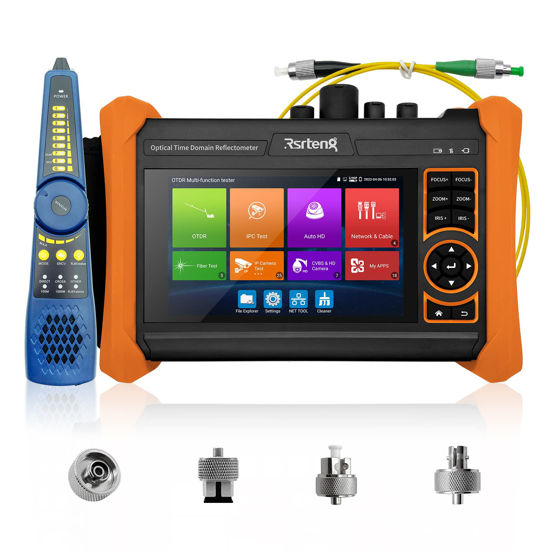

【OTDR Multi-function Tester RSO-6510】OTDR multi-function tester integrating OTDR test, event map, LS,OLS,OPM,VLS, H.265 IPC test, 4K coaxial/CVBS camera test, cable test, network test and other camera test tools,dual Gigabit Ethernet 10/100/1000M Ports,2.4Ghz WiFi(Not 5G),8GB TF card,POE,RS485,HDMI input,VGA input,audio I/O,etc. 5.4 inch IPS touch screen,1920x1152 resolution.Android 10.0 operation system.Carrying all in one OTDR fiber tester tool will make your work process simple and efficient. | 【Intelligent OTDR measurement】OTDR fiber optical tester provides wavelength of 1310/1550nm and dynamic range of 28/26dB,the max test distance 150km.For auto range mode: can one click start test,only select the wavelength and test time,quickly perform the test.For parameters setting mode:Testing after setting parameters distance scope,pulse width,duration of measurement etc.Curvest/ map are displayed simultaneously. Pls note:This mode only can detect optical signal,doesn't support live test. | 【Curve Analysis & Shortest EDZ ADZ & Data Storage】The OTDR fiber tester can analyzes the curve automatially,touch screen zoom or move curves operation.The tested results are displayed in the form of a list.Event list clearly reflects the type of event,distance,loss,decay,reflection. Shortest event dead zone (2m) and attenuation dead zone (10m). Support automatic or manual save the most of 4 traces simultaneousiy,creat trace reports to the storage path.SOR standard file format. | 【Event Map & OPM VFL LS OLS Tools】Event map can one key automatic test,and the information such as the length of the optical fiber link to be measured,the type of the joint and the position of the breakpoint are displayed graphically. Built-in optical power meter, visual fault locator,light source and optical light loss test tools,widely used in FTTX,optical network engineering construction. Before test or test result is not accurate, please using the alcohol cotton to clean the fiber connector. | 【IP Camera Tester & POE & Network Tools】CCTV tester support max H.265 12MP 4000 x 3000P H.264 4K IP Camera test.Support batch activate for Hik & DH cameras and modify IP address,password etc.IP Discovery/Quick OVIF/IPC test/RTSP play/Client APK. Creating test reports. PoE voltage test,PoE IEEE802.3af/at 48V,maximum power 25.5W. DC24V/2A, DC12V/3A,5V/2A power output. Network test tools trace route,link monitor,DHCP server,port flashing,ping test. Built-in wifi,wifi analysis,creat wifi hotspot. | 【Auto HD Coaxial Camera & Cable Tracer】Auto HD APP can automatically recognize max 8MP (3840x2160P) TVI/CVI/AHD coaxial camera type. CVBS camera test, NTSC/PAL(Auto adapt). PTZ control, call OSD menu, RS485 control. RJ45 TDR cable test(about1969fts). Equipped with cable tracer, can quickly find out the target cable(BNC cable,network cable and telephone cable) from the mess cables,and also can search shield cable. AC voltage detector,voltage range:AC12 to 1000V, frequency:50/60Hz. PD power test. | 【Battery & Quality Assurance】Built-in 7.4V Lithium polymer battery,5200mAh. Tester Dimension/Weight:8.3x5.98x1.93inch/1.9lbs.Continue to browse our web page to get more detailed parameters.We tested every OTDR multifunction tester before sent it,to ensure that you will not receive defective products.Professional OTDR/Camera/Cable/Network test tools,if you have any issues,pls feel free to contact us.We offer 24h technical support and 1 year warranty.
