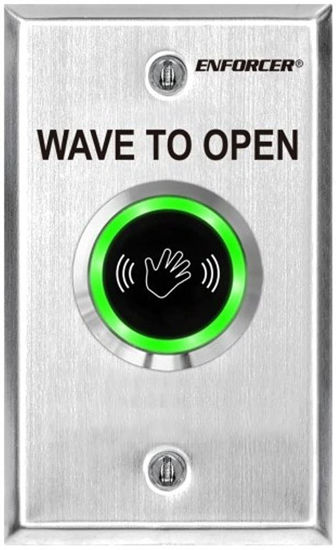

Seco-Larm SD-9263-KSQ Outdoor Wave-to-Open Sensor, Single-Gang with English Message; Adjustable Sensor Range Up to 7" (18cm); 1.2A Relay, Adjustable Trigger Duration 0.8~30 Seconds or Toggle

The ENFORCER Outdoor Wave-to-Open Sensor is a full-featured exit plate which uses IR technology to allow egress from a protected area or activate a device with the simple wave of a hand.

Key Features:
- Adjustable sensor range up to 7" (18cm)
- Weatherproof (IP65) for outdoor use
- Stainless steel plate
- 1.2A relay, adjustable trigger duration 0.8~30 seconds or toggle
- LED illuminated sensor area for easy identification
- Selectable LED colors (turns from red to green or green to red) to show sensor activated
- ETL UL294 Listed

Specifications:
- Current Draw: Standby- 16mA@12VDC / 25mA@24VDC, Triggered- 25mA@12VDC / 32mA@24VDC
- Sensing Range: 2"~7" (5~18cm)
- Operating Voltage: 12~24 VDC
- Reaction time: 10mS
- LEDs - Red: Standby (Colors are reversible)
- LEDs - Green: Triggered (Colors are reversible)
- Relay Type: Form C dry contact 1.2A@24VDC
- Output Time: 0.5~30 s, toggle
- Operating Temperature: -4°~131°F (-20°~55°C)
- Dimensions: 4-1/2" x 2-3/4" x 1-1/2" (115 x 70 x 39 mm)
- Weight: 108g
- Enclosure: IP65
