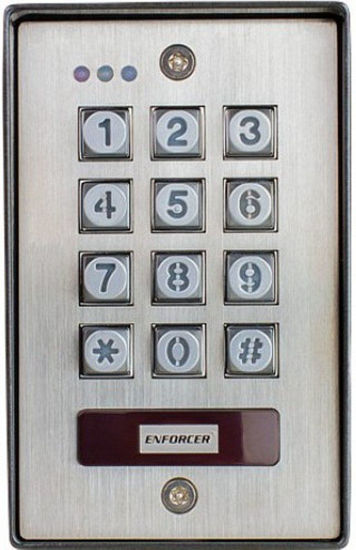

SECO-LARM SK-1123-SPQ Vandal Resistant Outdoor Access Control Keypad with Proximity Reader; 4 Available programmable access modes for all 3 outputs: card only, code only, card and common user code, card and unique user code

• Super user code gives admin access to keypad
• All features are programmed directly from the keypad: No need for an external programmer
• Mounts to a standard single-gang back box (surface-mount back box included)
• Tamper output: N.C. Dry contact, 50mA@24VDC max
• Mantrap: for a protected area with two doors, this feature allows only one door to be open at a time
• EEPROM Memory protects programmed information in case of power loss

• Operating Voltage: 12~24 VDC/VAC
• Current Draw-Standby: 66mA@12VDC
• Current Draw-Keypress: 93mA@12VDC
• Current Draw-1 Relay Active: 99mA@12VDC
• Current Draw-1 & 2 Relays Active: 126mA@12VDC
• Current Draw-Total Max: 160mA@12VDC
• Relay Output-#1: 1A@30VDC, Form C
• Relay Output-#2: 1A@30VDC, Form C
• Relay Output-Key Active: 100mA@24VDC
• Relay Output-Duress: 100mA@24VDC
• Relay Output-Interlock: 100mA@24VDC
• Relay Output-Tamper: 50mA@24VDC
• Egress Inputs: N.O. Ground
• Door Inhibit Input: N.O. Ground
• Door Sensor Input: N.C. Ground
• Operating Temperature: -4°~158°F
• Operating Humidity: 5~95% Non-condensing
• Weight: 1-lb, 2-oz
• Dimensions: 4-15/16”x3-1/8”x2-1/16”
• Proximity Reader Frequency: 125kHz (EM125)
• Proximity Reader Distance: 1-1/2” (38mm)
