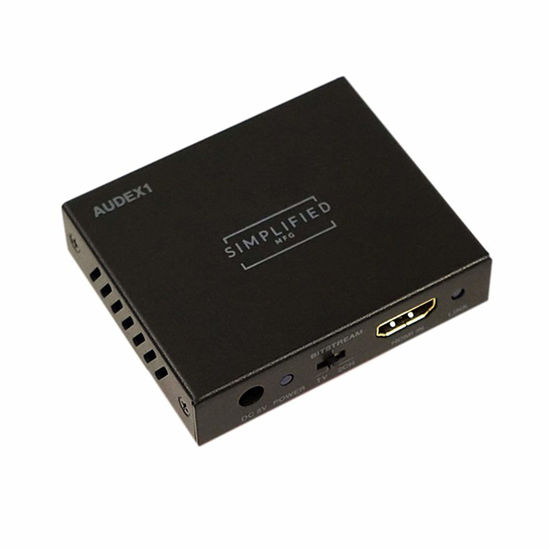

The AUDEX1 HDMI 18Gbps Audio Extractor extracts audio signals from any HDMI compliant source to digital optical or analog stereo L/R audio outputs. Both input and output HDMI connections support video resolution up to 4K2K@50/60Hz (YUV444) while supporting HDR 8, 10, 10+, and Dolby Vision pass through and HDMI high resolution digital audio formats bypass, LPCM 2CH, Dolby TrueHD, Dolby Digital Plus, Dolby Atmos and DTS-HD Master Audio, audio sampling rate up to 192 kHz. HDCP 2.2 and CEC bypass are supported.

Primary Use: to extract audio from a media player and then put that audio on a SPDIF (for multi-channel and 3.5mm mini-jack for stereo.

Features & Benefits:
HDMI 2.0b (18Gbps), HDCP 2.2 and DVI compliant
Video resolutions up to 4K2K@50/60Hz (YUV444)
Extracts HDMI audio to multi-channel optical (SPDIF) or L/R analog audio
Optical audio supports LPCM 2CH, Dolby Digital 2/5.1CH, DTS 2/5.1CH
Supports HDMI High Bit Rate(HBR) audio pass through
Audio sample rates up to 192kHz
HDR 8, 10, 10+, and Dolby Vision (High Dynamic Range) pass through
Supports CEC bypass
3-Year Warranty

Technical:
HDMI Compliance: HDMI 2.0b
HDCP Compliance: HDCP 2.2 and HDCP 1.4
Video Bandwidth: 18 Gbps
Video Resolutions: up to 4K2K@50/60Hz (YUV4:4:4), 4K2K@30Hz, 1080P@120Hz, and 1080P 3D@60Hz
Color Space: RGB, YCbCr 4:4:4, YCbCr 4:2:2
Color Depth: 8-bit, 10-bit, & 12-bit
HDMI Audio Formats (Pass-through): LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X
Optical Audio Formats: LPCM 2CH, LPCM 5.1, Dolby Digital 2/5.1CH, DTS 2/5.1CH
L/R Audio Formats: Analog Stereo 2CH
ESD Protection: Human body model - ±8kV (air-gap discharge) & ±4kV (contact discharge)
