Specification:
Technical Information:
UMTS(WCDMA)/HSPA+ Supported Bands: Band 1 (2100MHz), Band 2 (1900MHz), Band 4 (AWS 1700/2100 Mhz), Band 5 (850MHz), Band 8 (900MHz)
LTE Supported Bands: Band 1 (2100MHz), Band 2 (1900MHz), Band 3 (1800MHz), Band 4 (AWS 1700/2100 Mhz), Band 5 (850MHz), Band 7 U:2500 MHz - 2570 MHz D:2620 MHz - 2690 MHz, Band 8 U:880 MHz - 915 MHz D:925 MHz - 960 MHz, Band 13 (700MHz), Band 17 (700Mhz), Band18 U:815 MHz - 830 MHz D:860 MHz - 875 MHz, Band19 U:830 MHz - 845 MHz D:875 MHz - 890 MHz, Band 20 U:832 MHz - 862 MHz D:791 MHz - 821 MHz, GSM/GPRS/EDGE data at 850 MHz, 900 MHz, 1800 MHz, and 1900 MHz, GPS data at 1575.42MHz and 1227.6MHz, GLONASS data at 1602Mhz and 1246MHz

Performance Specifications:
Supported Voltage range: 3.135 V to 3.6 V
Operating Voltage: 3.3V
VBAT voltage range: 3.135V to 4.4V
Average Standby Power (RF radio off) < 10mW
Selective Suspend support (connected to network)
Data Transfer Peak current is 2.5 A
HSPA+ data rates downlink up to 42 Mbps and Uplink up to 5.7Mbps
GPRS class 33
EDGE class 33
WCDMA

Operating Environment:
The module full operating temperature in compliance with 3GPP specification shall be -10 °C to +55 °C.
Extreme operating condition: +55 °C to +70 °C
Non Operating Environment:
Temperature: -40 deg to 70 deg (B) (-40 deg to 158 deg (F)
Relative Humidity: 5% to 95%

Package List:

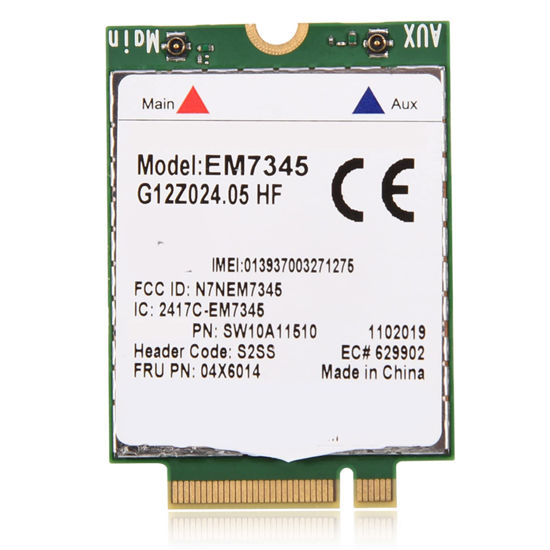

1 x EM7345 4G LTE WWAN Card
