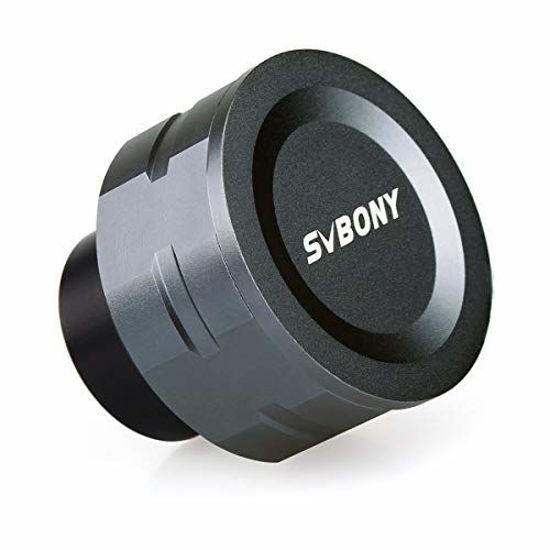

SVBONY SV105 digital eyepiece is a great way to get started with astroimaging;simply point your telescope at the Moon or the planet record a quick video

The included software analyzes each frame of video;throws away fuzzy ones and gets bright;clear images with the maximum amount of color and detail

Plug and play without driver
Real-time dynamic observation by crystal clear image

Light compensation technology
Greatly improve the camera's image clarity in low light conditions

Record 2K video at high speed
Up to 30 frames per second at 1920x1080 resolution

Connect with laptop or PC
Great for lunar and planetary shots;not suitable for deep space imaging

2 USB connectors
Prevent voltage instability;ensure normal observation at night

Aluminum 1.25" adapter barrel
Direct threaded connection to any telescope with standard 1.25" interface

SV105 eyepiece camera is a standard UVC device;it compatible with windows 7/8/10;windows system will automatically install the driver

Please connect SV105 camera to computer's USB port by using original USB cable;don't use an extension cord or USB HUB that may affect the speed and stability of image transmission

Test SV105 camera by sharpcap software
No need contact to the telescope

Open the software;double click SVBONY SV105 button;then you will see the image or some light on the screen

Manually adjust gain;contrast;exposure time;frame rate and color saturation on the right side table for the ideal images you want

Specification
Sensor:1/3" CMOS OV2710
Pixel size:3?m
Resolution:2 mega pixels 1080x1920
Max FPS at full resolution:30fps@1920x1080
ADC:10 bit
Interface:USB 2.0
Material: aluminum alloy
Supported OS:windows7/8/10
Power consumption:150mA@5V

Package includes
1xSVBONY eyepiece camera
1x1.8m USB cable
1xcleaning cloth
