Benefits:
Support VCM, CCM, QPSK, 8PSK, 16APSK, 32APSK;
Up to 173M/bps(TS Data Rate)
Dual flexible TS interfaces with serial or parallel single outputs with tri-state and cross-bar features
3.3 and 1.2V power supplies

Applications:
Data receiving
Media monitoring
Digital content distribution

Specifications:
ISDB-T
6,7 and 8 MHz bandwidth
Partial reception supported
Carrier recovery:±600 kHz
Timing recovery:±200 ppm
DVB-T2 and T2-Lite
Bandwidth: 1.7, 5, 6, 7 or 8 MHz
DVB-T2 versus DVB-T automatic detection
Carrier recovery: ±600 kHz
Timing recovery: ±200 ppm
DVB-T
Bandwidth: 6, 7, 8 MHz. ACI filtering for 7 MHz channels enables use of a fixed 8 MHz IF filter
Carrier recovery: ±600 kHz
Timing recovery: ±200 ppm
Supports all C.R.; G.I.;LP and HP streams
Advanced terrestrial channel equalizer
DVB-C2
Notch management
Timing recovery:±200 ppm
Advanced cable channel equalizer
DVB-C and ITU-T J.83 Annex B
DFE equalizer specific for cable network
Carrier recovery: ±11% of Symbol rate
Timing recovery: ±1000 ppm
DVB-S/S2/S2X
Enhanced immunity to co-channel interferers
Programmable carrier recovery range
Timing recovery: ±1000 ppm
Power consumption
Input/ Power: 12V/6~18W
Temperature: 0°~ 60°

System Requirements:
Windows XP / Vista/ 7/8/10, Linux
Available PCI Express x1, x4, x8 or x16 slot
Digital TV signal (ISDB-T/DVB-T2/C2/S2X/S2/T/C/S)

Package Contents :

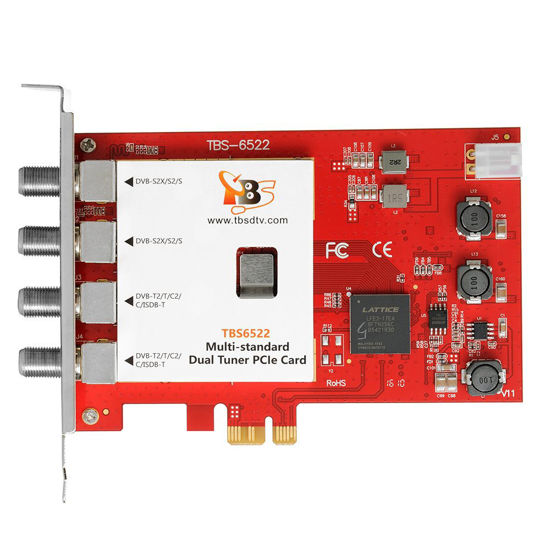

1 x TBS Multi Standard Tuner Card
1 x DC line
1 x F connector
