Specification:

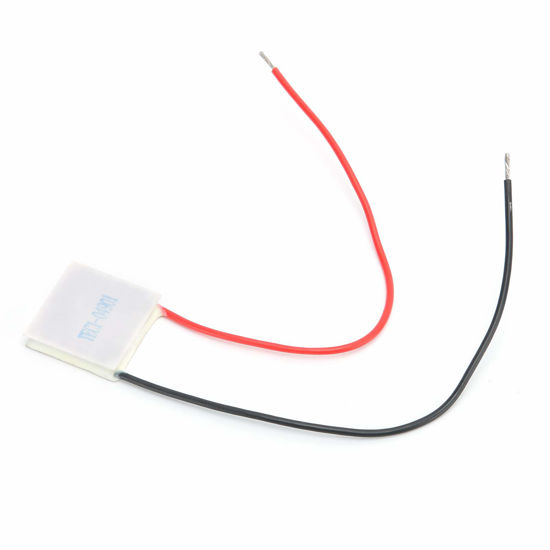

Item Type: Thermoelectric Cooler Module
Model: TEC1-04901
Material: Ceramic
Rated Voltage: DC5V
Maximum Voltage: DC5.78V (Th=30)
Maximum Current: 1.3A (U=5.78V, Th=30)
Maximum Temperature Difference: 65 (Qc=0,Th=30)
Maximum Cooling Capacity: 3.2W (T=0,Th=30)
Internal Resistance: 3.5-3.9?
Specification: 20AWG, L: Approx. 150mm / 5.9in
Packaging Process: 704 silicone rubber seal
Assembly Pressure: 6kg
Working Temperature: -50~+80
Storage Temperature: -40~+60
Application Range:
1. Applications in High-Tech Fields: Satellites, semiconductor lasers, infrared thermal imaging, infrared detectors, optoelectronic devices, etc.
2. Home Appliance Applications: Dehumidifiers, portable heating and cooling boxes, hot and cold water dispensers, cool helmets, cold drink cups, beverage wine coolers, etc.
3. Application in Electronic Technology: Cooling of electronic equipment, electronic components, computers, etc.
4. Industrial Applications: Automobile refrigerators, small air conditioners, dehumidifiers, thermostats, testing instruments, etc.
5. Agricultural and Biological Applications: Physical cooling pads, semiconductor physiological , vaccine preservation, etc.
Size: Approx. 25 x 25mm / 1 x 1in






Package List:
1 x Thermoelectric Cooler Module
