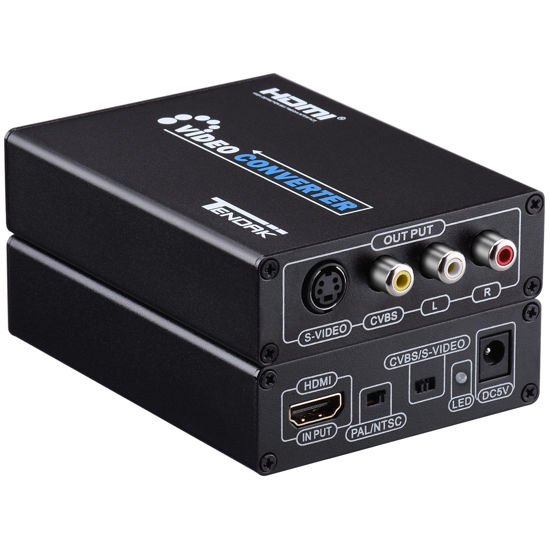

Tendak HDMI AV/S terminal HD VIDEO converter converts HDMI signal to ordinary AV (CVBS) composite VIDEO and S terminal (S - VIDEO signal, at the same time around the output channel.Can be switch output standard NTSC/PAL two common formats.Allows you to easily record hd HDMI DV, etc.Features:Metal casing materialHDMI Version: Compatible with HDMI 1.3Convert HDMI to either Composite Video or S-VideoIt allows the devices only equipped HDMI output to be connected to CRT TVIt is mostly applied in AV equipment testingInput HDMI signal resolution: 480p(60Hz), 576p(50Hz),720p(50Hz/60Hz),1080i(50Hz/60Hz),1080p(50Hz/60Hz)Output signal: CVBS (1.0Vpp), S-Video (Y:1.0Vpp,C:0.3Vpp)Output video systems: PAL/NTSCOutput video impedance: 75 ohmLength of the s-video cable: 1.5m/5ftLength of the RCA cable: 1.5m/5ftPackage include:1 x HDMI to RCA/S-Video Converter1 x AC adapter1 x RCA cable1 x S-Video Cable1 x User ManualNote:This product doesn't support simultaneous output of Composite Video. Please select either one of them by switch button on the unit.The maximum supported resolution of this HDMI converter is 1080P. If no signal came out from device. Please adjust the resolution of your device below 1080pIf there is a picture no sound. Please while connecting s-video, connect the converter to your speaker with the L/R cableFAQ:Device does not display1)if correctly connect Tendak converter; It do not support the opposite way2) if plug power adapter into power source (Please plug power cable in the last step)3) if try to switch PAL or NTSC format; or switch CVBS/S-VIDEO output signal,display black and white4) if set your TV/Monitor to "AV or SVIDEO" input source5) if try to set HDMI source to 480p, 576p/i, 720p, 1080p/i6) if try to change better HDMI cable or AV/S-VIDEO cable
