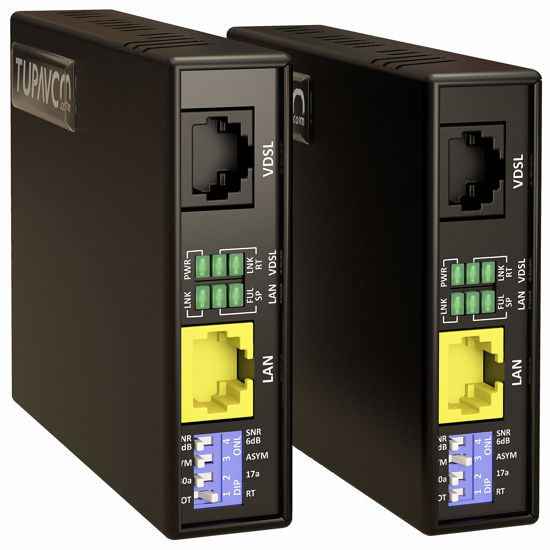

Ethernet Extender Kit TEX-100 extends the ethernet cable (CAT5, CAT6, CAT7, RJ45) range well beyond 328 feet (100m) limit to up to 7000 ft (2 km) over 2-wire twisted pair. The ethernet booster uses VDSL2 technology to extend network service through a single-pair phone line copper wire or an existing RJ-45 cable. This network extender kit can use an existing network or phone line setup to deliver long reach ethernet cable signal where the wireless signal transmission is not possible or in situations where a wired signal is limited by the RJ45 cable length.

These point to point network boosters are perfect for commercial buildings, residential units, hospitality environments, remote office spaces or private-network backbone to a corporate LAN. Network Extender can be used to connect separate buildings on remote locations where cable connection (RJ-45 or telephone line) is available or already exist, or connect remote devices (i.e. PC, computer, digital sensors in the field, AP, VoIP phone, WiFi APs, IP Camera, Intercom, Modem, Router) to the main ethernet/internet source.

Ethernet Extender TEX-100 kit comes in a pair, a sender and receiver, and is Plug-And-Play ready and easy to set up with no configuration, driver, or software needed. To establish a point-to-point connection, devices are factory preset in CO and CPE (RT) modes as the sender and receiver.

Four DIP switch user-selectable settings provide the flexibility required to achieve the optimal speed-distance combination and can optimize performance based on the quality of the line, speed, the distance to reach, different applications scenarios, and network topology. Use DIP switches to setup and control CO or CPE mode, 30a or 17a profile, Symmetric or Asymmetric band plan and 6dB or 9dB SNR margin.

Two sets of three LED indicators are built-in for easy diagnosing and monitoring the status of power, CO/CPE mode, link activity, data rate and Duplex mode.
