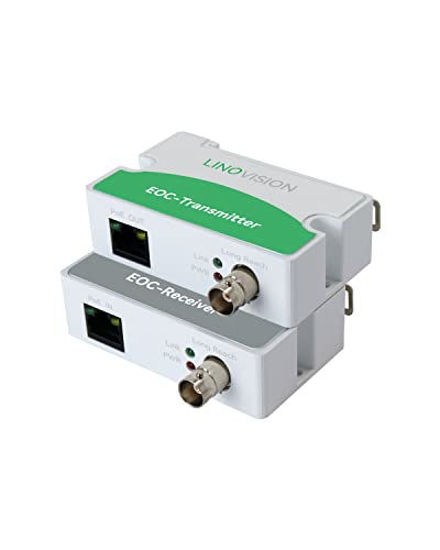

EOC (Ethernet Over Coax, also known as IP over Coax) Converter is used to transmit Video & Audio & Data over existing coaxial cables. Features with POE & IP data transmission, LINOVISION EOC converter is designed to upgrade traditional analogue video surveillance system to IP surveillance system without replacing coaxial cables. It is working with POE IP cameras, POE Wi-Fi AP, VoIP phones, etc.

Application

Ideal for Security Video Systems, Video Switching system, Home Automation, Multi-media , Education systems, Access Control system, Information Diffusion system, etc;

Package Included

• 1 * Pair EOC Converter  (Transmitter and Receiver Included)
• 2 * BNC to Twist pair connectors
• 1 * User Manual

Warranty & Technical Support

• 24/7 US local+ Global technical support
• 1 years US local warranty
• Free return in 30 days

FAQ :

Q: Why my POE device is offline when working with our EOC (IP Over Coax) Converter?

1. Because of reverse connection. EOC transmitter should be connected to POE device (IPC/VoIP), and EOC receiver is connected to POE supply device (POE NVR, POE Switch or POE Injector).

2. It is used for point-to-point coax cable direct connection ONLY, no BNC repeater/T-connect/splitter in the middle.

3. Because of insufficient load capacity. The maximum load capacity is 21W in 300ft transmission which is sufficient to power a regular IP PTZ camera. The load capacity can be at least 11W in 1000ft transmission which is sufficient to power most of IP cameras or VoIP phones.

4. Because of no power supply. Please be informed that EOC receiver has to be connected to an POE NVR, POE Switch or POE Injector to be powered.
