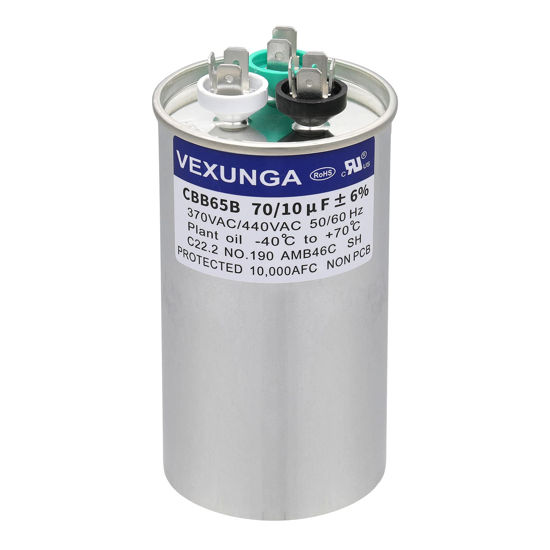

This capacitor is used for start-up and operation of AC motors, such as Motor Run or Heat Pump Air Conditioner or Condenser Straight Cool.It is small in size, lightweight, heat resisting and anti-explosion.

Model: CBB65（Universal model).
Case Material: unpainted aluminum case.
Dielectric Material: metallized polypropylene film.
Available Capacitance: 70+10uf.
Capacitance Tolerance:±6%.
Operating temperature: -40℃ to +70℃/-104℉ to +158℉.
Frequency:50/60 Hz.
Operating Life:60,000 hours with 94% survival (In accordance with the EIA­456 Industry Standard).
Dissipation Factor:0.1% maximum.

A VEXUNGA ac capacitor can be used in place of a 370 volt capacitor and a 440 volt capacitor.

A capacitor is an electric component that temporarily stores an electrical charge. A dual "run capacitor" supports two electric motors, such as in large air conditioner or heat pump units, with both a fan motor and a compressor motor. It saves space by combining two physical capacitors into one case. The dual capacitor has three terminals labeled "C", "FAN", and "HERM", "Herm"/"H" for the compressor motor, "Fan"/"F" for the fan, and "C" for the common line.
