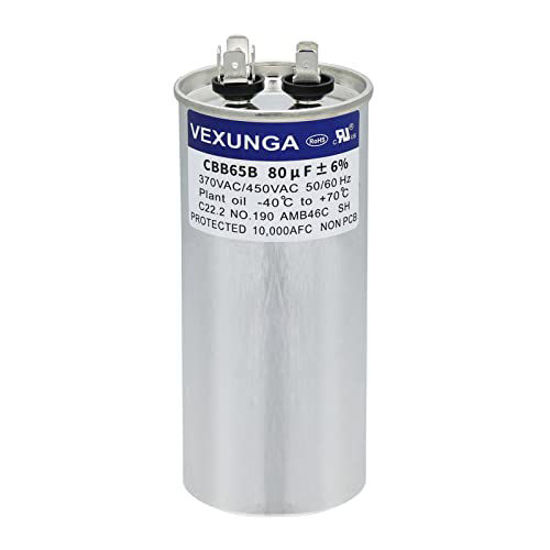

This capacitor is used for start-up and operation of one-way motors, such as Motor Run or Heat Pump Air Conditioner or Condenser Straight Cool.It is small in size, lightweight, heat resisting and anti-explosion.

Model: CBB65（Universal model).
Case Material: unpainted aluminum case.
Dielectric Material: metallized polypropylene film.
Available Capacitance: 80uf.
Capacitance Tolerance:±5%.
Operating temperature: -40℃ to +70℃/-104℉ to +158℉.
Frequency:50/60 Hz.
Operating Life:60,000 hours with 94% survival.
Dissipation Factor:0.1% maximum.

A VEXUNGA ac capacitor can be used in place of 250/300/370/400/440/450 volt capacitor.

FEATUREAND FUNCTION
This kind of capacitor uses polypropylene film (thickened by zinc and aluminum ) as medium, coiling by Automatic winding machine, Packaged plastic shell,  filling epoxy, Made Capacitors with good sealing, insulation performance, self-healing, low loss, low inherent temperature rise, stable performance, good reliability and longer life.

Applicable to the frequency of 50hz / 60hz ac power supply one-way motor starting and running, and it is widely used for pool pump, washing machine, cleaning machine, single phase electric motor, air compressor as starting and running.
