Model: VHD-UHAE is HDMI 2.0b, 18Gpbs, HDCP 2.2, one HDMI input to one HDMI output + Toslink Optical Audio output + 3 5mm stereo headphone jack output. | Support universal video resolutions up to 4Kx2K@60Hz (NTSC) or 50Hz (PAL), YUV4:4:4, RGB & YCbCr 4:4:4, Color Depth 10bit & 12bit, HDR, Dolby Vision. Please use certified 18Gbps HDMI cable under 15ft for guaranteed performance. | Extracts HDMI Audio signal (2CH PCM, Bitstream DTS & Dolby Digital 5.1Ch, and Dolby Digital Plus) to Toslink optical output; extracts 2CH PCM/LPCM to the 3.5mm headphone jack analog output; all higher HDMI audio signals will be available only from the HDMI output / pass through. | Model: VHD-UHAE does not support ARC (Audio Return Channel), for ARC application, please check the latest model "UAEP" or "VHD-UHAE2". | Supports HDMI high bit rate (HBR) Audio pass through Audio sample rates up to 192kHz. 10bits HDR (High Dynamic Range) & Dolby Vision Pass-Through; Support CEC Bypass; If you are interested in this model please also check UHD3X1A and VHD-UHD4X1A models, they have a switch on the front for improved flexibility | Three audio EDID settings: Use 2CH setting for stereo 3.5mm headphone output; 5.1CH setting for optical audio output to 5.1CH surround receiver; use Pass setting for HDMI TV speaker audio. | Lifetime free technical support from u9ltd and ViewHD one year replacement warranty | Package Includes: VHD-UHAE HDMI Audio Extractor, User Manual, 100V-240V AC to 5V DC Power Adapter

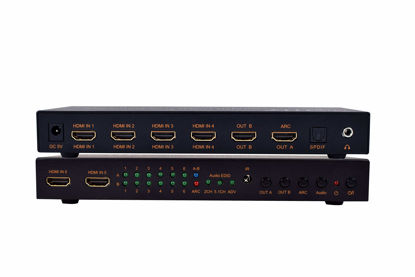

Six HDMI inputs to two HDMI outputs A and B; can be the same input or different inputs for both outputs; matrix means any input can go to any output. | Supports full 1080P HD, 3D and 4K (HDMI v1.4 4096x2160@24fps or 3820x2160@30fps) | Support three custom audio modes: 2.0 / 5.1 / ADV for different audio applications; ADV mode supports the HDMI receiver audio application. | HDMI output A supports ARC function; ARC audio is available from the SPDIF Toslink port ONLY; analog audio output does not support ARC | Special ADV mode supports HDMI audio receiver application (OUT A goes to TV, OUT B goes to the HDMI receiver) | Full metal jacket construction. Package Includes: 6x2 matrix, power adapter, IR remote control, user manual.

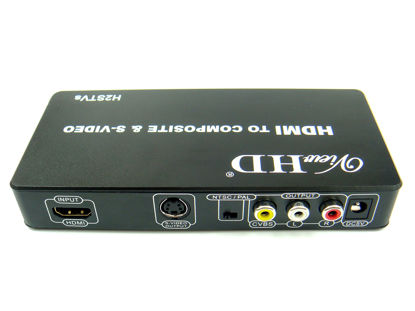

Universal HDMI to Composite AV + S-Video Converter, Support PAL and NTSC Formats | Adopts the newest generation chipset to deliver the best video quality in class | No video trimming, AV picture size is identical to input HDMI picture size | Support HDMI input video format up to 1080P; Please make sure the NTSC/PAL switch is set correctly to avoid video problems. | Including RCA AV + S Video Cable and Power Adapter. One Year Warranty

ViewHD Newest Advanced HDMI True Matrix 4x2, Any Input to Any Output | Audio Signal from Any Input Can Be Obtained from SPDIF Digital Optical or Hi-Fi Stereo 3.5mm outputs @ Output A | HDMI 1.3 Certified Support 1080P, 3D Video and Digital Surround Sound Setup | SPDIF Output Supports Audio Up To Dolby Digital / DTS 5.1CH; It Does NOT Support PCM 5.1CH and Beyond | Full Metal Compact Jacket, Durable Construction (Not cheap plastic package).
