Product Decription

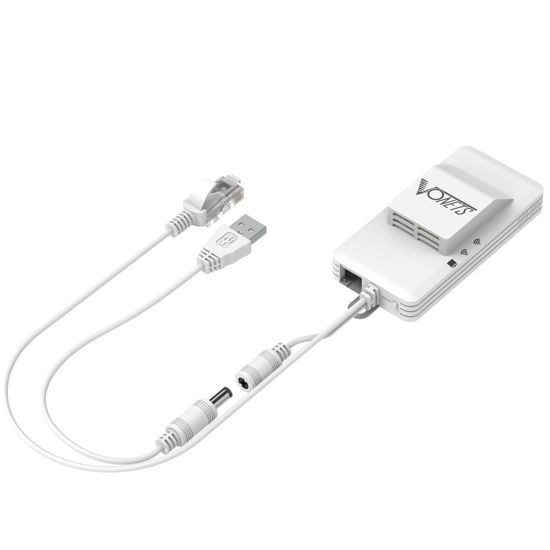

VONETS VAP11AC is a professional dual band WiFi bridge and repeater product carefully developed by HouTian network, can work in 5G and 2.4G band at the same time, adopt temperature compensated auto frequency control technology (TAFC), WiFi signal is more stable and not easy to drop.

Function Features:

1.Mini, Fast, stable and effectively
2.Three power supply method (DC power, USB , Industrial connection but only choose one way)
3.Easy full house WiFi coverage
4.Can turn off unused WiFi 2.4G or 5G wireless hotspots, reducing energy consumption
5.Support manually close SSID broadcast, manually close WiFi hardware
6.Built-in heat sink with convection cooling holes on both sides of the housing for more efficient heat dissipation
7.TAFC temperature compensated function, make wireless frequencies more stable and effective
8.Fixed hook,convenient for project application

Hardware Features:

1.Support Wide Voltage DC5-15V power supply
2.One DC2.0 power hole; one dedicated two in one power supply cable, with a set of power supply and a set of 10/100M adaptive Ethernet cable
3.Reset button (long press 5 seconds, then release, the device will automatically restore the factory)
4.LED Status Instruction:
Ethernet port status light (Yellow);
2.4G WiFi connection status light (Blue);
5G WiFi connection status light (Green);
5.Antenna: Built-in 2pcs Smart omnidirectional 2.4G Antennas;
Built-in 2pcs Smart omnidirectional 5G Antennas;
6.Small Size: 94mm x 45mm x 15mm（L x W x H）

Packages:

1* VAP11AC Device
1* User Manual
1* Retail Box
