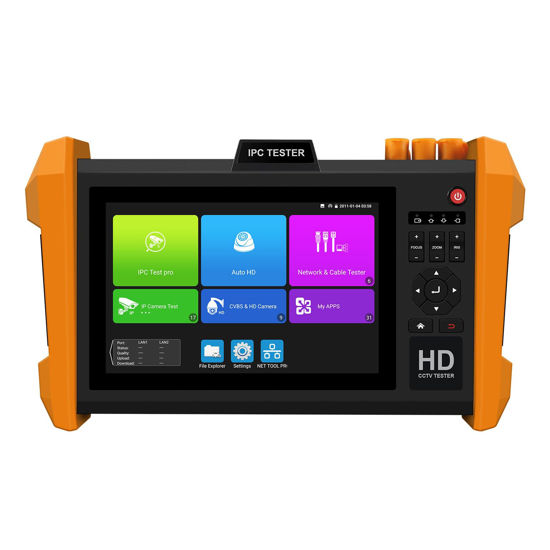

WANLUTECH CCTV HD Tester
Support insert SFP optical fiber module, for optical fiber network testing; support test switches,routers,firewalls,network cards,transceivers and other equipment with SFP optical ports for direct data transmission testing
Camera Test:
●7 inch IPS touch screen, 1920*1200 resolution
● 8K H.265 video display via mainstream
● Support 8MP AHD CVI TVI SDI Camera test
● Auto HD app, auto recognize HD coax camera type and resolution, support snapshot, video record & playback, coaxial PTZ & call OSD menu.
● HDMI Input, up to 4K 30FPS, HDMI output support 4K 60FPS
● 2K 60FPS VGA input
● Rapid OVIF, Auto log in and display image, one-key create testing report, including camera IP address, resolution, encoding and other related information; support cross-network segment test; audio and video synchronization test; face recognition and other functions
● AXIS, Hik camera test, enter OVIF app, input username and password to test
● CVBS camera test and PTZ control
● IPC TEST (Non-OVIF test), HIK test tool,DH test tool
● Video level meter, peak video signal level, SYNC signal level, Color bar chroma level measurement
● DC12V/3A power output, DC24V 2A power output
● DC5V 2A power output, can connect USB camera, USB and Mouse, as power bank
● 48V PoE power output power, max power 30W
● Rapid video, just by one key to detect all network cameras and auto display
● Built in Wi-Fi Analysis, support 2.4G/5G frequency band, can test Wi-Fi camera, create Wi-Fi hotspot
Cable Test:
● Improvement cable tester, UTP cable, telephone cable etc order and connectivity test, can save testing report, if special number, need customized，and detect near-end, mid-end and far-end fault test of RJ45 cable plug
● RJ45 cable TDR test, test cable pair status, length, attenuation, reflectivity, impedance, skew etc.
